Fire Detection Solution CCTV integrated Solution

  • Over 99% accuracy, minimize false alarm
  • Fast detection time within 1 second
  • Check the extent of fire with sensitivity gauge
  • Sensing with real-time visuals
  • NDAA, TAA

CCTV integrated Fire Detection Solution

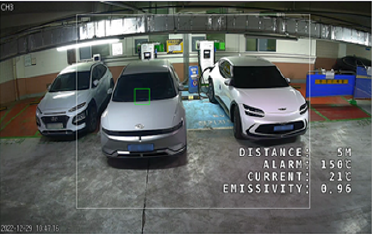

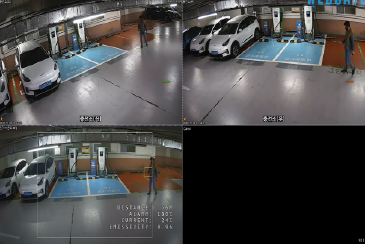

Real Footage of Fire Detection

WEBGATE’s fire detection solution
Webgate’s fire detection solution is equipped with a hardware flame/heat detection sensor in a video surveillance camera to enable accurate and fast fire detection, quick notification, and real-time monitoring.

Flame detection sensor Quick detection time Real-time push alerts
Accuracy Over 99% accuracy, minimize false alarm
Speed Fast detection time within 1 second
Intuition Check the extent of fire with sensitivity gauge
Efficiency Sensing with real-time visuals
Stability Applying high-performance Korean AI SoC

CCTV integrated Fire Detection Solution
System Configuration

CCTV integrated Fire Detection Solution
Comparison by Detection Method

CCTV integrated Fire Detection Solution
Major features of Flame Detection Camera

Flame detection with dedicated sensor
- High accuracy by detecting the flame’s unique wavelength
- Low false rate compare to video analysis method which analyzes color and shape
- Optimum algorithm from 5 years experience in field

Flame detecting gauge
- Detecting gauge displays flame status visibly
- Real-time check for malfunctioning of product

Detection time
- Min. 1sec for flame detection, sensitivity is adjustable (~10sec)
- Video analysis type requires min. 10sec for analysis

Advanced fire detection performance (NK2100/5100 series)
- Quick and accurate detection by specialized AI technology and a dedicated flame detection IR sensor
- Reliable AI events by applying high-performance Korean AI SoC
- AI Feature
: Object Detection, Intrusion Detection, Line Crossing, Loitering, SMD / Fall down(*Option) / Smoke(*Option)

CCTV integrated Fire Detection Solution
Major Features of solution

Fire Detection Alarm
- Fire detection alarm is displayed on monitoring image real-time
- Rapid reaction toward fire with various warning alarms from PC, Mobile app and linked devices such as light and audio

Real-time Video Monitoring and Recording / Playback
- Real-time video verification in the control room or client site (PC or mobile app)
- Verification on the fire scene through recorded video playback (from recorder)

Real-time Fire Alarm Server (WinRDS)
- Real-time fire alarm notification along with video to a large number of users (Android, iOS)
- Personal information protection : To send alarm notification only when the fire detected
- Video access rights per specific person or group to strengthen privacy protection

CCTV integrated Fire Detection Solution
Real-time fire detection and push alarm

CCTV integrated Fire Detection Solution
Specification

Type Photo Model Specification

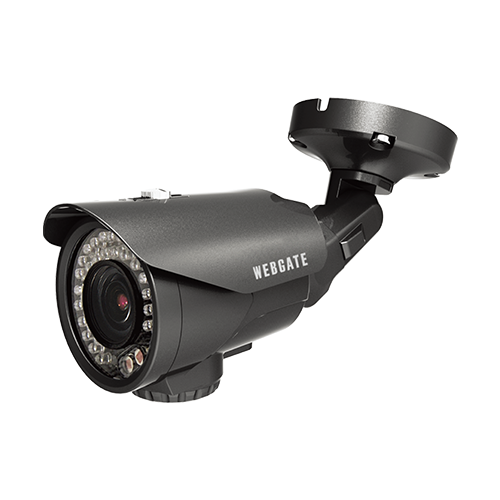

Flame Detection Camera NK2100BL-AF-F2 ◼ Outdoor/Indoor
◼ 1/2.8" 2M AI Network flame detection camera
◼ Auto focus 2.7~12mm / IR 45m / Sensor 2pcs

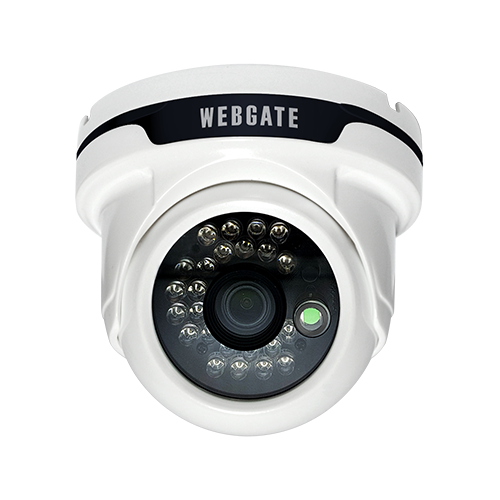

NK2100ED-F1 ◼ Indoor
◼ 1/2.8" 2M AI Network flame detection camera
◼ Fixed 3.6mm / IR 30m

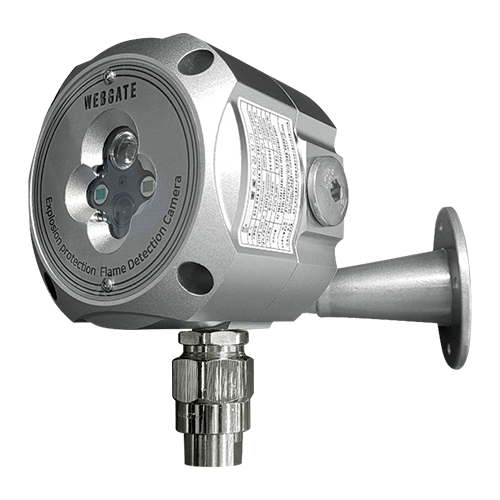

NK2100EX-F2 ◼ Explosion proof
◼ 1/2.8" 2M AI EX Proof Flame Detection Camera
◼ Fixed 3.6mm / Sensor 2pcs
Flame Detection Camera
(EX-SDI)
K1080BL-AF-F2 ◼ Outdoor/Indoor
◼ 1/2.8" 2M EX-SDI(HD-SDI) flame detection camera
◼ Auto focus 2.7~12mm / IR 40m / Sensor 2pcs
C1080D-F1 ◼ Indoor
◼ 1/3" 2M EX-SDI(HD-SDI) flame detection camera
◼ Fixed 3.6mm / IR 30m / Sensor 2pcs
K1080PBL-AF-F2 ◼ Outdoor/Indoor
◼ 1/2.8" 2M EX-SDI(HD-SDI) flame PoC detection camera
◼ Auto focus 2.7~12mm / IR 40m / Sensor 2pcs
C1080PD-F1 ◼ Indoor
◼ 1/3" 2M EX-SDI(HD-SDI) flame PoC  detection camera
◼ Fixed 3.6mm / IR 60m / Sensor 1pcs
Heat Detection Camera NK1080BL-T450 ◼ 1/2.8" 2M Network Thermal Detection Camera
◼ Fixed 3.6mm / IR 40m / Max. 450℃
Recorder NVR / DVR ◼ Pop up and push alarm in case of fire detection event
◼ Selectable playback of flame detection event



CCTV integrated Fire Detection Solution
Case Study


DS Neolux



ECOPROBM



Korea Land & Housing Corporation(LH)

DAEWOONG BIO Inc.



LG Chem.



Korea Management Corporation.(Gangdong-Gu)
