HD-CCTV installation at D-CUBE Geoje Department Store
2013.10.01 Views 5540



HD-CCTV installation at D-CUBE Geoje Department Store

 - Remodeling project for department store’s video surveillance system, Upgrade to HD-CCTV system using existing coaxial cables







Installation Place

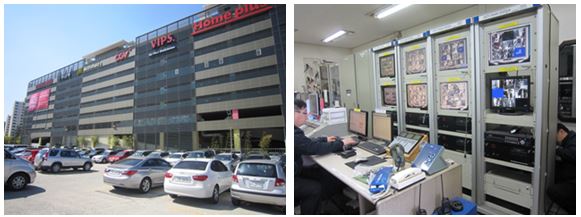

- First started as the Ocean department store in 2006 in Geoje, starting 2008, Daesung Industrial Co. Ltd., is now running the business in the name of D-Cube Geoje department store. D-Cube department store is the largest of its kind in Geoje with over hundreds of analogue cameras sending video via coaxial cable to central monitoring room. They had been using PC type DVR to record video and to monitor necessary places.





- D-Cube department store had already planned to upgrade the existing CCTV system to enhance the quality in parking lot monitoring, theft prevention and to monitor customer frictions. They wanted to receive Full-HD quality videos without changing the existing coaxial cable. HD-SDI transmission based HD-CCTV system had many advantages over IP camera especially for D-Cube’s requests.

-  HD-CCTV system provides lossless Full-HD videos, no delay in real-time monitoring, easy installation and uses existing coaxial cable to provide Full-HD video. Based on these reasons, D-Cube chose WEBGATE’s HD-CCTV system.





- WEBGATE’s partner company, Sarada Co. Ltd., had exchanged existing analogue cameras with HD-CCTV box type camera, C1080BM and 13 set of 8ch HD-CCTV DVRs. For some cameras which are affected by restriction of transmission distance, RP102 of HD-SDI repeater was used to solve the distance constraints.

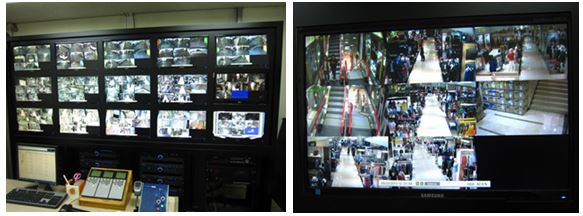

- D-Cube department store’s CCTV operators and staffs had no problem running the new WEBGATE’s solution, and have been showing satisfaction with wider viewing angle and clear video image compared to previous analogue camera system.
