SONY STARVIS Image Sensor
Highly sensitive SONY STARVIS CMOS Sensor provides crystal clear image in low light condition
|
SONY STARVIS CMOS Sensor |
General Sensor |
 |
 |
Higher performance SoC
High performance ISP functions such as 3DNR, WDR, and etc.
Revolutionary response speed and stabilized performance.
3D-DNR 3D-Digital Noise Reduction
Advanced 3D-DNR technology detects and eliminates unnecessary noise by conducting comprehensive analysis of image pixels.

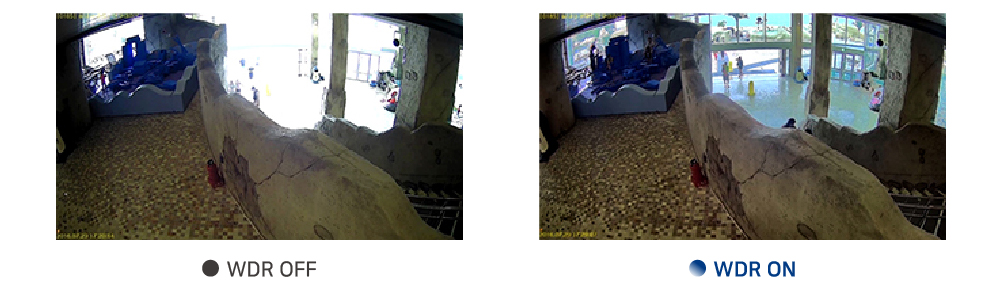

WDR Wide Dynamic Range
Realize one clear image by combining overexposed and underexposed identical images in backlight condition.
| WDR ON | WDR OFF |
 |  |
ONVIF
Support standard protocol ONVIF, which makes it compatible with 3rd party’s software and system.
Made in Korea
Different league from low priced Chinese products.
Proven quality of Made in Korea and reasonable price.
[제품사양]
| 비디오 |
|---|
| 비디오 압축 |
H.264 (MPEG4 AVC) Main profile, Baseline profile / MJPEG |
| 해상도 |
스트림1 : 1920×1080 ~ 320×184
스트림2 : 640×360 ~ 320×184
스트림3 : 1920×1080 |
| 비트레이트 |
128Kbps ~ 5Mbps |
| 프레임레이트 |
최대 30fps@1080p |
| 스트리밍 |
스트림1 : H.264 Stream up to 1080p 30fps
스트림2 : H.264 nHD Stream / 30fps
스트림3 : JPEG 1080p Stream / 1fps |
| 카메라 |
|---|
| 이미지센서 |
1/2.8”, 2.1Megapixel Sony STARVIS Sensor |
| 최대 해상도 |
1920(H) × 1080(V) = 2.1M pixels |
| 영상출력 |
순차 주사 방식 (Progressive Scan) |
| 최저조도 |
칼라 |
0.02Lux@F1.3 |
| 흑백 |
0Lux (IR LED On) |
| 렌즈 |
Day & Night |
True Day & Night (ICR) |
| 타입 |
f=3.6mm 고정 초점 렌즈 |
| 카메라 기능 |
Day/Night 전환 |
Auto / Color / B&W / Extern |
| 역광보정(WDR) |
LOW / MIDDLE / HIGH |
| BLC |
OFF / ON |
| HLC |
LEVEL(0~20) / COLOR |
| 자동이득제어(AGC) |
0~10 |
| 명암비 개선(ACE) |
OFF / LOW / MIDDLE / HIGH |
| 노이즈제거(DNR) |
OFF / LOW / MIDDLE / HIGH |
| 슬로우셔터(DSS) |
OFF / AUTO / x2 / x4 / x8 / x16 / x32 |
| 선명도(SHARPNESS) |
0~10 |
| 영상회전(Mirror) |
좌/우(Horizontal), 상/하( Vertical) |
| 화이트밸런스 |
AUTO(NORMAL,VIVID,SOFT)/AUTOext/PRESET/MANUAL |
| 셔터 |
INDOOR, OUTDOOR, INDOOR-ANTI BLUR, OUTDOOR-ANTI BLUR, MANUAL(1/30~1/30000, 12steps) |
| 프라이버시 마스크 |
ON / OFF (BOX-10 Positions) |
| 안개제거(DE-FOG) |
OFF / ON (MODE / LEVEL) |
| IR거리 |
50m |
| 네트워크 & 소프트웨어 |
|---|
| 네트워크 & 소프트웨어 |
이더넷 |
1 고속 이더넷 RJ-45 port (10/100Mbps) |
| 네트워크 타입 |
고정 IP, 자동할당 IP(DHCP) |
| DDNS |
미지원 |
| 포트 |
HTTP : 80 / RTSP : 554 |
| 네트워크 프로토콜 |
HTTP / RTSP/RTP / Onvif/ TCP/IP / UDP / ARP / ICMP / DHCP |
| 카메라 프로토콜 |
Onvif |
| 동시접속 스트리밍 |
최대 6개 스트리밍 (NVR 기준 3대) |
| 일광 절약 시간제(DST) |
지원 |
| NTP |
지원 |
| 웹 브라우저 |
IE 11 |
| 웹 모니터링 |
IE : ActiveX based / Other browser : JPEG based |
| 웹 구성 |
Multi-platform web config/ Desktop (Mac / Linux / Windows) |
| NVR |
Onvif를 지원하는 NVR |
| PC CMS 소프트웨어 |
Control Center Standard (bundle) / Control Center Pro |
| 릴레이 서버 |
WinRDS |
| IP주소 필터링 |
지원(*) |
| 동작 환경 및 전원 |
|---|
| 전원 |
DC 12V ± 10%, PoE(802.3af, 36V~57V) |
| 소비전력 |
IR OFF : 최대 150mA / IR ON : 최대 480mA |
| 동작 온도 |
-10°C ~ 45°C |
| 동작 습도 |
0% RH ~ 80% RH |
| 인증 |
KC, FCC, CE |
( * 표시: 지원 예정 )
제품의 사양은 성능 및 품질 향상을 위해 사전 예고없이 변경 될 수 있습니다.
[Specification]
| Video |
|---|
| Compression |
H.264 (MPEG4 AVC) Main profile, Baseline profile / MJPEG |
| Resolution |
Stream1 : 1920×1080 ~ 320×184
Stream2 : 640×360 ~ 320×184
Stream3 : 1920×1080 |
| Bitrate |
128Kbps ~ 5Mbps |
| Frame Rate |
Max. 30fps@1080p |
| Streaming |
Stream1 : H.264 Stream up to 1080p 30fps
Stream2 : H.264 nHD Stream / 30fps
Stream3 : JPEG 1080p Stream / 1fps |
| Camera |
|---|
| Image Sensor |
1/2.8”, 2.1Megapixel Sony STARVIS Sensor |
| Max. Resolution |
1920(H) × 1080(V) = 2.1M pixels |
| Video Output |
Progressive Scan |
| Min. Illumination |
Color |
0.02Lux@F1.3 |
| B/W |
0Lux (IR LED On) |
| Lens |
Day & Night |
True Day & Night (ICR) |
| Type |
f=3.6mm Fixed Mega Pixel Lens |
| Features |
Day/Night |
Auto / Color / B&W / Extern |
| WDR |
LOW / MIDDLE / HIGH |
| BLC |
OFF / ON |
| HLC |
LEVEL(0~20) / COLOR |
| AGC |
0~10 |
| ACE |
OFF / LOW / MIDDLE / HIGH |
| DNR |
OFF / LOW / MIDDLE / HIGH |
| DSS |
OFF / AUTO / x2 / x4 / x8 / x16 / x32 |
| SHARPNESS |
0~10 |
| Mirror |
left/right(Horizontal), top/bottom( Vertical) |
| Whitebalance |
AUTO(NORMAL,VIVID,SOFT)/AUTOext/PRESET/MANUAL |
| Shutter |
INDOOR, OUTDOOR, INDOOR-ANTI BLUR, OUTDOOR-ANTI BLUR, MANUAL(1/30~1/30000, 12steps) |
| Privacy Mask |
ON / OFF (BOX-10 Positions) |
| DE-FOG |
OFF / ON (MODE / LEVEL) |
| IR distance |
50m |
| Network & Software |
|---|
| Network & Software |
Ethernet |
1 Fast Ethernet RJ-45 port (10/100Mbps) |
| Network Type |
Fixed IP, DHCP |
| DDNS |
Not Supported |
| Port |
HTTP : 80 / RTSP : 554 |
| Protocol |
HTTP / RTSP/RTP / Onvif/ TCP/IP / UDP / ARP / ICMP / DHCP |
| IP Camera Protocol |
Onvif |
| Simultaneous Live View |
Up to 6 streams with WESP (Supports 3 NVRs) |
| DST |
Support |
| NTP |
Support |
| Web Browser |
IE 11 |
| Web Monitoring |
IE : ActiveX based / Other browser : JPEG based |
| Web Configuration |
Multi-platform web config/ Desktop (Mac / Linux / Windows) |
| NVR |
NVRs supporting Onvif |
| PC CMS Software |
Control Center Standard (bundle) / Control Center Pro |
| Relay Server |
WinRDS |
| IP address filter |
Support(*) |
| Environment |
|---|
| Power |
DC 12V ± 10%, PoE(802.3af, 36V~57V) |
| Power Consumption |
IR OFF : 150mA (MAX) / IR ON : 480mA (MAX) |
| Operation Temperature |
-10°C ~ 45°C |
| Operation Humidity |
0% RH ~ 80% RH |
| Certifications |
KC, FCC, CE |
( * Marks: Scheduled to be supported )
Specifications are subject to change without notice for product improvement.
