TDM 1.1 technology

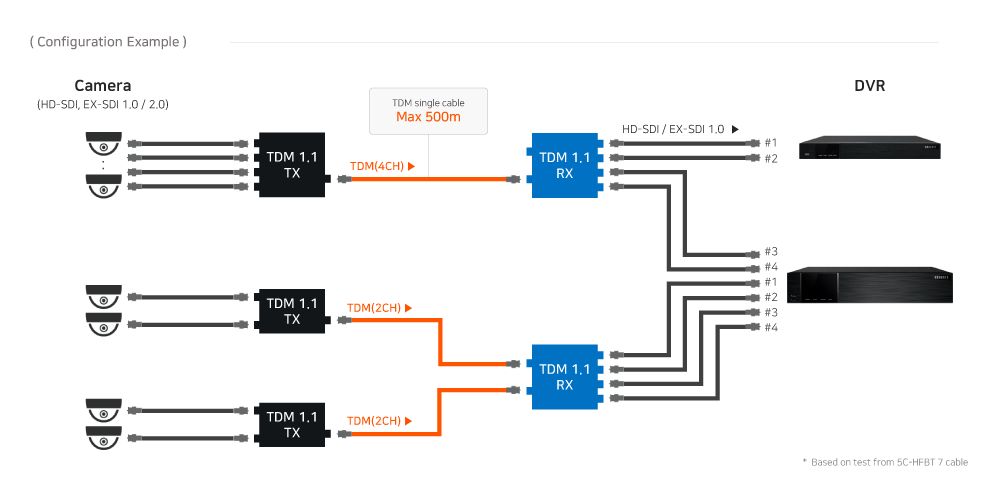

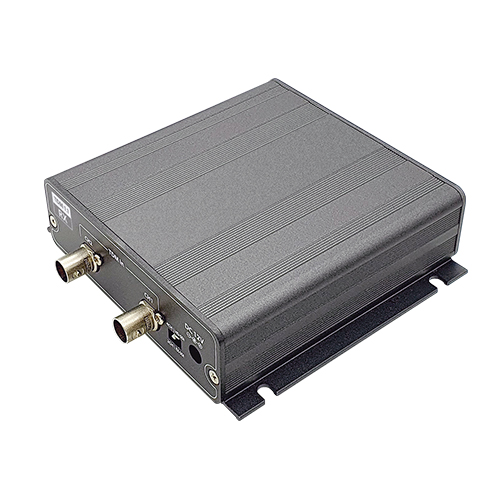

Transmitter : Receives Max 4 channels HD-SDI, EX-SDI 1.0 / 2.0 videos and transmits them up to 500m with single coax cable
Receiver : Receives TDM signal from Transmitter then converts it into HD-SDI or EX-SDI to outputs them up to 4 video signals
INTERFACE |
TDM input |
Format |
TDM 1.1
|
Channel |
2 CH
|
Video Output
|
Output |
4 CH
|
Format |
HD-SDI / EX-SDI1.0
|
Resolution |
1920×1080p 25,30Hz
|
Transmission
Distance
|
EX-SDI 1.0 |
max. 500m / based on 5C-HFBT 7 cable |
HD-SDI |
max. 200m / based on 5C-HFBT 7 cable |
TDM 1.1 |
max. 500m / based on 5C-HFBT 7 cable
|
Connector |
BNC |
BNC-F 75Ω |
Power |
DC JACK |
Switch |
Output Select
|
OFF : HD-SDI
ON : EX-SDI
|
Mode Select |
OFF: TDM04-TX Connection
ON : TDM02-TX Connection |
LED |
Red |
Power Status |
Green |
Video Signal Input
|
Control |
CoC(UCC-A) / 9600bps |
Power Consumption |
DC 12V / 235 mA
|
Operation Temperature/Humidity |
-10℃ ~ +50℃ / 0 ~ 80% |
Material / Weight |
Aluminum / 300 g
|

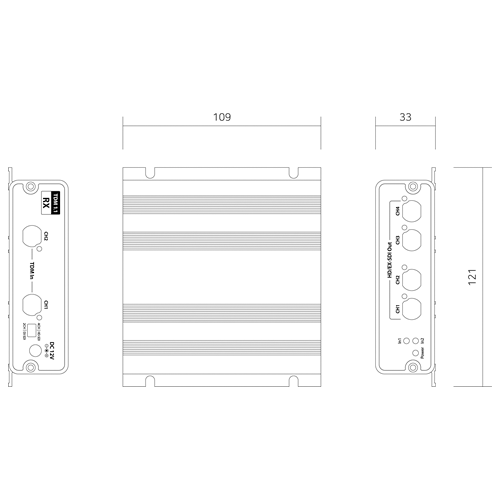

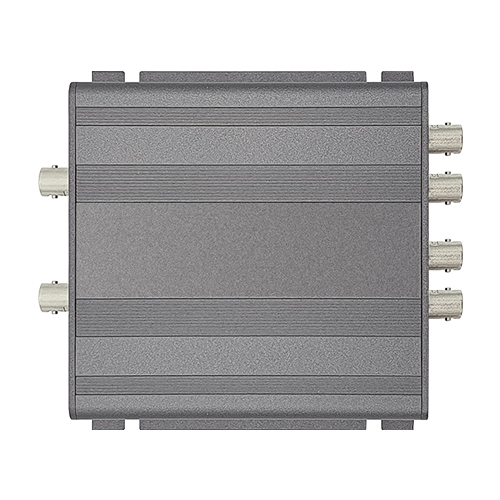

Dimension |
109(W) × 121(H) × 33(D) mm
|
* 제품의 사양은 성능 및 품질 향상을 위해 사전 예고없이 변경 될 수 있습니다.
(Specifications are subject to change without notice for product improvement.)
