Image Sensor |
1/2.8”, 2.1Megapixel Sony STARVIS Sensor |
|
Full Resolution |
1920(H) x 1080(V) = 2.1M pixels |
|
Scanning System |
Progressive Scan |
|
Min. Illumination |
Color : 0.02Lux@F1.3
B/W : 0Lux (IR LED On)
|
|
Lens |
Filter : True Day & Night (ICR)
Type : 3.6mm Fixed Mega Pixel Lens
|
|
Day & Night |
AUTO / COLOR / BW / EXTERN |
|
WDR |
LOW / MIDDLE / HIGH
|
|
BLC |
OFF / ON
|
|
HLC |
LEVEL(0~20) / COLOR |
|
AGC |
0~10 |
|
ACE |
OFF / LOW / MIDDLE / HIGH |
|
DNR |
OFF / LOW / MIDDLE / HIGH |
|
DSS |
OFF / AUTO / x2 / x4 / x8 / x16 / x32
|
|
SHARPNESS |
0~10 |
|
Mirror |
Horizontal / Vertical |
|
White Balance |
AUTO / AUTOext / PRESET / MANUAL |
|
Electric Shutter |
INDOOR / OUTDOOR / INDOOR-ANTI BLUR / OUTDOOR-ANTI BLUR / MANUAL(1/30~1/30000, 12steps) |
|
Privacy |
ON / OFF (BOX-10 Positions) |
|
DE-FOG |
OFF / ON (MODE, LEVEL) |
|

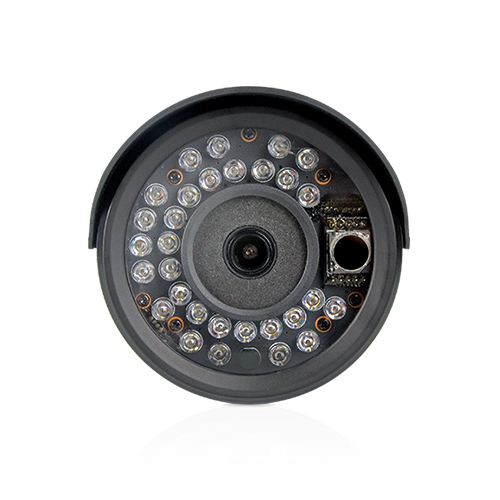

IR LED |
30 pcs |
|
VIDEO |
|
Compression Type |
H.264 (MPEG4 AVC) Main profile, Baseline profile / MJPEG
|
|
Resolution |
1st : 1920×1080, 1280×720, 800×600, 704×480, 704×400, 640×360, 480×272, 320×184
2nd : 640×360, 480×272, 320×184
3rd : 1920×1080
|
|
Bitrate |
128Kbps ~ 5Mbps |
|
Frame Rate |
30fps@1080p |
|
Streaming |
1st : H.264 Stream up to 1080p 30fps
2nd : H.264 nHD Stream, 30fps
3rd: JPEG 1080p Stream, 1fps
|
|
NETWORK & SOFTWARE |
|
Interface |
1 Fast Ethernet RJ-45 port (10/100Mbps) |
|
Network Type |
Fixed IP, DHCP |
|
DDNS |
Not Supported
|
|
Port |
HTTP : 80
RTSP : 554
|
|
Protocol |
HTTP / RTSP/RTP / Onvif(TBD) / TCP/IP / UDP / ARP / ICMP / DHCP
|
|
Onvif |
Support |
|
Simultaneous Users |
Max. 3 users |
|
DST |
TBD |
|
NTP |
Support |
|
IP Address Filtering |
TBD |
|
Web Browser (Recommended)
|
IE 11 |
|
Web Monitoring |
IE : ActiveX based / Other browser : JPEG based |
|
Web Configuration |
Multi-platform web config / Desktop (Mac, Linux, Windows) |
|
NVR |
NVRs supporting Onvif |
|
PC CMS Software |
Control Center Standard (bundle), Control Center Pro |
|
Relay Server |
WinRDS |
|
ENVIRONMENTAL & PHYSICAL |
|
Power Source |
DC 12V ± 10%, PoE(36V~57V)
|
|
Power Consumption |
IR OFF : 150mA / IR ON : 400mA (MAX)
- PoE를 사용하면 PoE 전력 효율로 인해 전력 소비량이 최대 30% 증가 합니다.
(When PoE is used, the power consumption is increased by max 30% due to the power efficiency of PoE.)
|
|
Operating Temperature |
-10°C ~ 45°C |
|
Humidity |
0% RH ~ 80% RH |
|
Certification |
KC |
