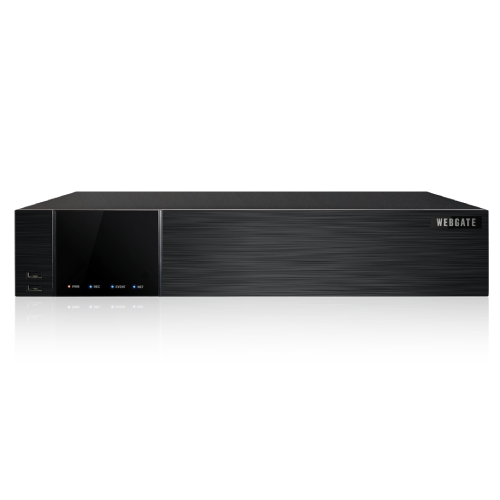

Video input format |
BNC |
HD-SDI, EX-SDI(1.0 / 2.0 / 2.1), EX-SDI TDM
|
|
IP(Ethernet) |
WESP, Onvif Profile S |
|
H.264 |
|
Resolution / Frame Rate |
HD-SDI
EX-SDI 1.0
EX-SDI 2.0
EX-SDI 2.1 |
1920×1080@30fps, 1920×1080@25fps
2560×1440@30fps, 2560×1440@25fps
3840×2160@30fps, 3840×2160@25fps |
|
EX-SDI TDM |
1920×1080@30fps, 1920×1080@25fps |
|
IP |
1st stream: 1280×720~3840×2160
2nd stream: max 1280×720 |
|
Connectors |
16ch, 75Ω BNC connector |
|
PoC |
16ch, Power over Coax, Max. 22W/ch |
|
CoC |
16ch, Control over Coax, Max. 57600 bps |
|
VIDEO OUTPUT |
|
Video output |
Resolution |
HDMI : 3840×2160, 1920×1080
VGA : 1920×1080, 1280×1024, 1024×768, 800×600
BNC(SDI) : 1920×1080
BNC(CVBS) : 720×480, 720×576 |
|
Mode |
HDMI/VGA Main + CVBS Spot
HDMI/SDI Main + CVBS Spot
HDMI Main + VGA Spot + CVBS Spot
HDMI Main + SDI Spot + CVBS Spot |
|
BNC(CVBS) |
1, 4, 9, 16 split-screen, Switching |
|
BNC(SDI) |
Main : Same as HDMI output
Spot : 1, 4, 9, 16 split-screen, Switching
Format : HD-SDI, EX-SDI, EX-SDI 2.0 |
|
RECORDING |
|
Compression |
H.264 / JPEG |
|
Resolution |
3840×2160, 2560×1440, 1920×1080, 1280×720, 960×480 |
|
Rate |
Max. 480fps@1920×1080, Max. 480fps@2560×1440, Max. 240fps@3840×2160 |
|
Quality |
10 levels up to 12bps@2M, 12Mbps@4M, 16Mbps@8M(4K) |
|
Mode |
Normal/Event Record, Schedule/Event Record, Emergency Record |
|
Schedule |
24hrs / 7days |
|
PLAYBACK |
|
Mode |
Instant Playback / Search |
|
Speed |
Max. 480fps@1920×1080
Max. 480fps@2560×1440
Max. 240fps@3840×2160 |
|
Search type |
Date/Time, Calendar/Time-line, Event, Thumbnail(Interval/Motion), Text, Bookmark |
|
Block playback |
1day ~ 365days |
|
EVENT & ALARM |
|
Event source |
Motion detection, Sensor input, Video Loss, Text input, AI, System |
|
Event check schedule |
24hrs / 7days |
|
Event action |
Relay, Buzzer, E-mail, FTP, Video pop-up, Camera Preset, Mobile Alarm Push, System alarm |
|
MD area |
15×10 |
|
Text input |
POS/ATM support, AVE VSI Pro/Hydra support |
|
SYSTEM ALARM |
|
Event source |
HDD fail. HDD almost full, Password fail, WRS/DDNS fail, Recording Fail |
|
Event action |
Pop-up Message, Buzzer, E-mail, Relay, Mobile Alarm Push |
|
AUDIO |
|
Input/output |
4 RCA input / HDMI & RCA output |
|
Compression |
G.711 |
|
Direction |
Both |
|
PTZ |
|
Protocols |
HIK-C, AHD, C1080(D1080), C1080PT-Z20, Pelco-D, Pelco-P, Samsung, Panasonic and others |
|
NETWORK |
|
Interface |
1 Gigabit Ethernet (10/100/1000Mbps) |
|
Type |
Static IP, Dynamic IP, xDSL |
|
DDNS |
WNS, DynDNS, NoIP, WRS |
|
Bandwidth limit |
0.01 ~ 100Mbps, unlimited |
|
NTP |
Server / Client / Both |
|
Users |
10 Monitoring, 4 Playback |
|
RTSP |
Supported |
|
UPnP |
UPnP auto port forwarding |
|
Streaming |
H.264 stream, High resolution
1 additional H.264 stream, Normal resolution
1 JPEG stream, Normal resolution |
|
Service streaming |
Service Channel or Remote DVR |
|
SECURITY |
|
User level |
1 admin, 10 users |
|
User privilege |
Menu, PTZ, Relay, Playback, Power off, Copy, Network MIC, Camera setup |
|
IP filtering |
Supported |
|
STORAGE & BACKUP |
|
Storage devices |
6 internal SATA HDDs, 1 external eSATA Interface, Gigabit network for NS04R/UHS04R |
|
RAID Level |
External storage including NS04R/UHS04R (Level 1/5/10) |
|
File system |
High-performance proprietary file system
Data-loss protection against power interrupt
Safe HDD head parking in power failure |
|
Capacity |
Max. 128TB with eSATA, Max. 256TB with cascaded NS04R/UHS04R
12TB HDD Supported per SATA Port |
|
Backup type |
Multi-channel exe file, Single channel avi file, JPEG(Capture) |
|
Backup device |
3 USB 2.0 drive (2 front, 1 rear)
FAT32(Max 32GB), NTFS |
|
S.M.A.R.T. |
Health checking and alarm, Reallocation sector monitoring and alarm |
|
SERIAL & I/O |
|
Serial port |
2 RS-485 |
|
Sensor input |
16 Dry-contacts + Sensor of IP Camera |
|
Relay output |
2 Relays |
|
CONTROLLER |
|
Device |
IR remote controller, Joystick Keyboard(option), Mouse |
|
SOFTWARE |
|
HTML5 Webviewer |
Monitoring / Event / PTZ / Playback for browser supporting HTML5 |
|
WebViewer |
Monitoring / Event / PTZ / Playback for IE |
|
Mobile viewer |
Monitoring / Playback / Alarm Push / PTZ / Audio / Log View with iPhone & Android |
|
CMS |
Control Center, Max. 1024 units |
|
SDK |
ActiveX(COM) SDK |
|
ENVIRONMENTAL & PHYSICAL |
|
Dimension |
445×418×88 mm |
|
Weight |
6 Kg (No HDD) |
|
Operating temperature |
5°C~45°C (41°F ~ 113°F) |
|
Operating humidity |
80% below, free of condensation |
|
Power |
AC free volt (100~240VAC), 50/60Hz |
|
IPFR |
Supporting IPFR (Intelligent Power Failure Recovery) |
|
PoC Power |
DC 48V/3.75A |
|
Power consumption |
Max. 35W, Typical 28W(No HDD) |
|
Approval |
KC, FCC, CE |
