| VIDEO INPUT |
Channel |
36CH IP video input |
| Protocol |
WESP, Onvif Profile S |
| Format |
H.264, H.265 |
| Resolution |
1st stream : 720p~4K
2nd stream : Max. 960x540 |
| Performance |
320Mbps |
| Stream |
RTSP over TCP, RTSP over HTTP |
| PoE |
Not supported |
| PoE Mode |
Not supported |
| VIDEO OUTPUT |
|---|
| Video output |

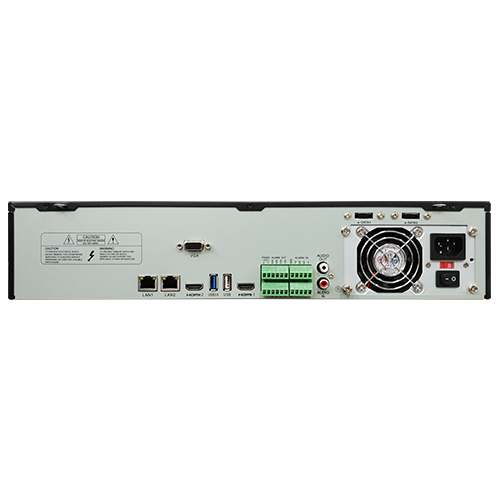

Port |
2 HDMI, 1 VGA |
| Format |
HDMI 1 : 4K/1080p
HDMI 2 : Same as VGA
VGA : 1920×1080, 1280×1024, 1024×768, 800 X 600 |
| Modes |
Duplicate : HDMI 1, HDMI 2, VGA main
Spot : HDMI 1 main, HDMI 2 / VGA spot
Main only : HDMI 1 main, HDMI 2 / VGA off |
| Display |
Main : 1, 4, 6, 9, 10, 13, 16, 25, 36 split-screen
Spot : 1, 4, 9, 16 split-screen |
| RECORDING |
|---|
| Compression |
H.264 / H.265 |
| Resolution |
1st stream : 720p~4K
2nd stream : Max. 960x540 |
| Rate |
Total 1080 fps, Max. 30fps/ch @ 4K |
| Bitrate |
1st stream : Max. 8Mbps
2nd stream : Max. 2Mbps |
| Mode |
Manual&Event / Schedule&Event / Emergency |
| Schedule |
24hrs / 7days |
| PLAYBACK |
|---|
| Mode |
Instant Playback / Search |
| Speed |
1x, 2x, 4x, 8x, 16x, 32x, 64x |
| Search type |
Time/Calender, Event, Thumbnail(Time, Motion), Text |
| Block playback |
1day ~ 365days |
| EVENT & ALARM |
|---|
| Event source |
Motion detection, Sensor input, Video Loss, Text input, AI, Flame, Thermal, System |
| Event check schedule |
24hrs / 7days |
| Event action |
Relay, Buzzer, E-mail, FTP, Video pop-up, Camera Preset, Mobile Alarm Push, System alarm |
| Text input |
POS/ATM support, AVE VSI Pro/Hydra support |
| SYSTEM ALARM |
|---|
| Event source |
HDD fail. HDD almost full, Password fail, WRS/DDNS fail, Recording Fail |
| Event action |
Pop-up Message, Buzzer, E-mail, Relay, Mobile Alarm Push |
| AUDIO |
|---|
| Input/output |
1 RCA (1 Vpp) input / HDMI & RCA output |
| Compression |
G.711u |
| Direction |
Both |
| PTZ |
|---|
| Protocols |
IP Camera with Onvif protocol & WESP protocol |
| NETWORK |
|---|
| Ethernet |
2 Gigabit Ethernet RJ-45 port (10/100/1000Mbps) |
| Protocol |
WESP, HTTP, RTSP/RTP, (Onvif), UPnP, RADIUS, TCP/IP, UDP, ARP, ICMP, DHCP, PPPoE, SMTP, SNMP, SNTP, TLS |
| DDNS |
WNS, DynDNS, NoIP, WRS |
| TX Performance |
1~78Mbps |
| NTP |
Mode : Server, client, Both
Server : Public, Private |
| Users |
Total 10 Users (Monitor + Playback) Playback 3 Users |
| TLS |
Supported |
| Service Streaming |
Remote DVR |
| SECURITY |
|---|
| User level |
1 admin, 10 users |
| User privilege |
Menu, PTZ, Relay, Playback, Power off, Copy, Network MIC, Camera Setup |
| IP filtering |
10 IP address ranges |
| STORAGE & BACKUP |
|---|
| Storage devices |
8 SATA, 1 eSATA (e-SATA1) HDDs, 1 eSATA (e-SATA2) HDDs |
| RAID Level |
External storage including network storage UHS04R (Level 1/5/10) |
| File system |
High-performance proprietary file system, Data-loss protection against power interrupt |
| Capacity |
Max. 128TB with eSATA, Max. 256TB with cascaded UHS04R
12TB HDD Supported per SATA Port(Recommended to use more than 3TB capacity HDDs) |
| Backup type |
Multi-channel exe file, Single channel avi file, JPEG(Capture) |
| Backup device |
2 USB 2.0 drive (1 front, 1 rear), 1 USB 3.0 drive (rear)
FAT32(Max 32GB), NTFS |
| S.M.A.R.T. |
Health checking and alarm, Reallocation sector monitoring and alarm |
| SERIAL & I/O |
|---|
| Serial port |
1 RS-485 K/B, 1 RS-485 P/Z(*) |
| Sensor input |
8 Dry-contacts + sensor of IP camera |
| Relay output |
4 Relays |
| CONTROLLER |
|---|
| Device |
Joystick Keyboard(option), Mouse |
| SOFTWARE |
|---|
HTML5 Webviewer
|
Monitoring / Event / PTZ / Playback for browser supporting HTML5 |
| ActiveX Webviewer |
Monitoring / Event / PTZ / Playback for IE |
| Smart Phone App. |
Monitoring / Playback / Alarm Push / PTZ / Audio / Log View with iPhone & Android |
| CMS |
Control Center, Max. 1024 Units |
| SDK |
ActiveX(COM) SDK |
| ENVIRONMENTAL & PHYSICAL |
|---|
| Dimension |
445(W)×436(D)×90(H)mm |
| Weight |
5.58kg (No HDD) |
| Operating temperature |
5°C ~ 45°C (41°F ~ 113°F) |
| Operating humidity |
80% below, free of condensation |
| Power |
AC 100~240V, 50/60Hz |
| IPFR |
Not supported |
| Power consumption |
Max. 12.22W without Storage |
| Approval |
KC |
