4M QHD More Vivid &Sharper
4M QHD is perfect for large area coverage and identifying objects at great distances.
DVR supports 4M QHD (2x greater than Full-HD) recording.
Remote DVR Full control of remote DVR/NVR -Patent Application
Share DVR/NVR’s main output on PC and real-time remote control from DVR/NVR’s OSD menu on PC.

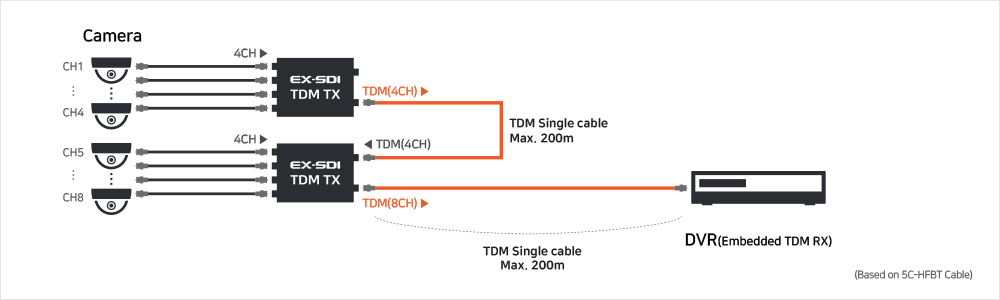

TDM Time Division Multiplexer
This is transmission method where the max 8 channels video inputs are time-division multiplexed then can be transmitted over single optic or coaxial cable.
Embedded TDM RX(EX-SDI) receives max 8ch video with single cable.
Free VMS
Provide Central Monitoring Software (Control Center)for free, supporting Max. 1,024 DVRs with various and great functions.
VIDEO INPUT | ||
---|---|---|
Video input format | BNC | HD-SDI, EX-SDI(1.0 / 2.0 / 2.1), EX-SDI TDM |
IP(Ethernet) | WESP, Onvif Profile S | |
Resolution / Frame Rate |
HD-SDI EX-SDI 1.0 EX-SDI 2.0 EX-SDI 2.1 |
1920×1080@30fps,1920×1080@25fps 2560×1440@30fps,2560×1440@25fps |
EX-SDI TDM | 1920×1080@30fps, 1920×1080@25fps | |
IP |
1st stream: 1280×720~2560×1440 2nd stream: max 1280×720 |
|
Connectors | 4ch, 75Ω BNC connector | |
PoC | Not Supported | |
CoC | 4ch, Control over Coax | |
VIDEO OUTPUT | ||
Video output | HDMI/VGA Duplicate Mode |
1, 4 split-screen HDMI : 1920×1080 VGA : 1920×1080 User defined display / Alarm pop-up / Sequential switching |
VGA Spot Mode | Not Supported | |
RECORDING | ||
Compression | H.264 | |
Resolution | Same as input resolution (1920×1080, 2560×1440) | |
Rate | Max. 120fps@1920×1080,2560x1440 | |
Quality | 10 levels up to (Default - Q7) 6Mbps@2M, 6Mbps@4M | |
IP Camera | Same as BNC Camera | |
Mode | Normal/Event, Schedule/Event, Emergency | |
Schedule | 24hrs / 7days | |
PLAYBACK | ||
Mode | Instant Playback / Search | |
Speed | Max. 120fps@1920×1080,2560x1440 | |
Search type | Date/Time, Calendar/Time-line, Event, Thumbnail(Interval/Motion), Text, Bookmark | |
Block playback | 1day ~ 365days | |
EVENT & ALARM | ||
Event source | Motion detection, Sensor input, Video Loss, Text input, AI, Flame, Thermal, System | |
Event check schedule | 24hrs / 7days | |
Event action | Buzzer, E-mail, FTP, Video pop-up, Camera Preset, Mobile Alarm Push, System alarm | |
MD area | 15×10 | |
Text input | POS/ATM support, AVE VSI Pro/Hydra support | |
SYSTEM ALARM | ||
Event source | HDD fail. HDD almost full, Password fail, WRS/DDNS fail, Recording Fail | |
Event action | Pop-up Message, Buzzer, E-mail, Mobile Alarm Push | |
AUDIO | ||
Input/output | HDMI output | |
Compression | G.711 | |
Direction | Both | |
PTZ | ||
Protocols | Support various protocols including C1080(D1080), C1080PT-Z20, Pelco-D, Pelco-P, Samsung, Panasonic and others | |
NETWORK | ||
Interface | 1 Gigabit Ethernet (10/100/1000Mbps) | |
Type | Static IP, Dynamic IP, xDSL | |
DDNS | WNS, DynDNS, NoIP, WRS | |
Tx Bandwidth limit | 1~77Mbps | |
NTP | Server / Client / Both | |
Users | Total 10 Users (Monitor + Playback) Playback 3 Users | |
RTSP | Supported | |
UPnP | UPnP auto port forwarding | |
Streaming |
H.264 stream, High resolution 1 additional H.264 stream, Normal resolution 1 JPEG stream, normal resolution for e-mail or mobile |
|
Service streaming | Service Channel or Remote DVR | |
SECURITY | ||
User level | 1 admin, 10 users | |
User privilege | Menu, PTZ, Playback, Power off, Copy, Network MIC, Camera setup | |
IP filtering | Supported | |
STORAGE & BACKUP | ||
Storage devices | 1 internal SATA HDDs, Gigabit network for NS04R/UHS04R | |
RAID Level | External storage including NS04R/UHS04R (Level 1/5/10) | |
File system |
High-performance proprietary file system Data-loss protection against power interrupt Safe HDD head parking in power failure |
|
Capacity |
Max. 256TB with cascaded NS04R/UHS04R 12TB HDD Supported per SATA Port |
|
Backup type | Multi-channel exe file, Single channel avi file, JPEG(Capture) | |
Backup device | 2 USB 2.0 drive (2 front) | |
FAT32(Max 32GB), NTFS | ||
S.M.A.R.T. | Health checking and alarm, Reallocation sector monitoring and alarm | |
SERIAL & I/O | ||
Serial port | 1 RS-485 | |
Sensor input | Sensor of IP camera | |
CONTROLLER | ||
Device | Mouse, IR remote controller (option), Joystick Keyboard (option) | |
SOFTWARE | ||
HTML5 Webviewer | Monitoring / Event / PTZ / Playback for browser supporting HTML5 | |
WebViewer | Monitoring / Event / PTZ / Playback for IE | |
Mobile viewer | Monitoring / Playback / Alarm Push / PTZ / Audio / Log View with iPhone & Android | |
CMS | Control Center, Max. 1024 units | |
SDK | ActiveX(COM) SDK | |
ENVIRONMENTAL & PHYSICAL | ||
Dimension | 260(W) × 241(D) × 45(H) mm | |
Weight | 1.2 Kg (No HDD) | |
Operating temperature | 5°C~45°C (41°F ~ 113°F) | |
Operating humidity | 80% below, free of condensation | |
Power | DC 12V / 3A | |
IPFR | Supporting IPFR (Intelligent Power Failure Recovery) | |
Power consumption | Max. 17W, Typical 13W (No HDD, TBD) | |
Approval | KC, FCC, CE |
QA5.8
( * 표시: 지원 예정 / * Marks: Scheduled to be supported)
제품의 사양은 성능 및 품질 향상을 위해 사전 예고없이 변경 될 수 있습니다.
(Specifications are subject to change without notice for product improvement.)
