EX-SDI

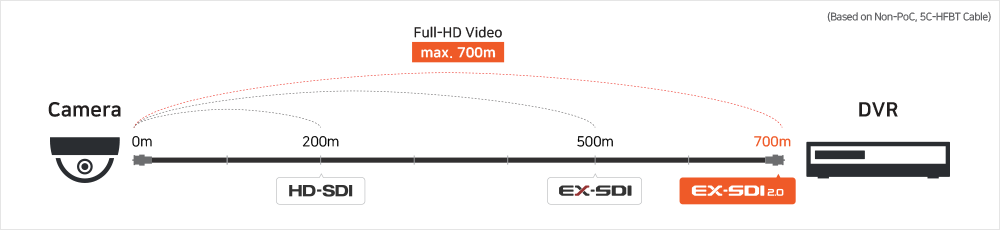

By incorporating VLC (Visually Lossless Codec) into the existing HD-SDI transmission method, the transmission distance is extended without any loss in image quality.
Using a single coaxial cable (5C-HFBT), EX-SDI 1.0 supports Full-HD video transmission up to 500m, while EX-SDI 2.0 extends the range to 700m.
3D-DNR 3D-Digital Noise Reduction
Advanced 3D-DNR technology detects and eliminates unnecessary noise by conducting comprehensive analysis of image pixels.
WDR Wide Dynamic Range
Realize one clear image by combining overexposed and underexposed identical images in backlight condition.
Made in Korea
Different league from low priced Chinese products.
Proven quality of Made in Korea and reasonable price.
[제품사양]
| 비디오 |
|---|
| 출력단자 |
1 (BNC 1.0 Vp-p, 75Ω) |
| 해상도 |
1080p30 / 1080p25 |
| 포멧 |
HD-SDI / EX-SDI / EX-SDI 2.0 selectable |
| 카메라 |
|---|
| 이미지센서 |
1/2.8" 2.1 Megapixel SONY CMOS Sensor |
| 최대 해상도 |
1920 (H) × 1080 (V) = 2.1M pixels |
| 영상출력 |
순차 주사 방식 (Progressive Scan) |
| 최저조도 |
칼라 |
0.02Lux@F1.3 |
| 흑백 |
0Lux (IR LED On) |
| 렌즈 |
Day & Night |
True Day & Night |
| 타입 |
f=3.6mm 고정 초점 렌즈 |
| 카메라 기능 |
Day/Night 전환 |
Auto / Color / B&W / Extern |
| 역광보정 |
OFF / HLC / BLC / WDR |
| 신호 대 잡음비(SNR) |
52dB 이상 |
| 조리개 조절(Iris Adjust) |
Manual |
| 자동이득제어(AGC) |
LEVEL 0~10 |
| 명암비 개선(ACE) |
OFF / LOW / MIDDLE / HIGH |
| 노이즈제거(DNR) |
OFF / LOW / MIDDLE / HIGH |
| 슬로우셔터(DSS) |
OFF / AUTO / X2~X32 |
| OSD 언어 |
영어 |
| 디지털 효과 |
OFF / H-MIRROR / V-MIRROR |
| 화이트밸런스 |
AUTO(NORMAL,VIVID,SOFT)/AUTOext/PRESET/MANUAL |
| 셔터 |
INDOOR, OUTDOOR, INDOOR-ANTI BLUR, OUTDOOR-ANTI BLUR, FLICKER, MANUAL (11 Steps) |
| 사생활 보호 |
OFF / ON (Programmable 10 zones) |
| 디펙 보정 |
LIVE DPC |
| 안개제거(DE-FOG) |
OFF / ON (AUTO, MANUAL-LOW/MIDDLE/HIGH) |
| 스마트 IR |
OFF / ON |
| IR 거리 |
45m |
| 동작 환경 및 전원 |
|---|
| OSD 제어 |
OSD Key |
| 입력 전압 |
DC12V(±10%) |
| 소비전력 |
IR OFF : 150mA(MAX) / IR ON : 400mA(MAX) |
| 사용 온도 / 습도 |
-10ºC~ +50ºC / MAX 90% RH |
| 보관 온도 / 습도 |
-20ºC ~ +60ºC / MAX 90% RH |
| 인증 |
KC |
( * 표시: 지원 예정 )
제품의 사양은 성능 및 품질 향상을 위해 사전 예고없이 변경 될 수 있습니다.
[Specification]
| Video |
|---|
| Output |
1 (BNC 1.0 Vp-p, 75Ω) |
| Resolution |
1080p30 / 1080p25 |
| Format |
HD-SDI / EX-SDI / EX-SDI 2.0 selectable |
| Camera |
|---|
| Image Sensor |
1/2.8" 2.1 Megapixel SONY CMOS Sensor |
| Max. Resolution |
1920 (H) × 1080 (V) = 2.1M pixels |
| Video Output |
Progressive Scan |
| Min. Illumination |
Color |
0.02Lux@F1.3 |
| B/W |
0Lux (IR LED On) |
| Lens |
Day & Night |
True Day & Night |
| Type |
f=3.6mm Fixed Mega Pixel Lens |
| Features |
Day/Night |
Auto / Color / B&W / Extern |
| Back Light Compensation |
OFF / HLC / BLC / WDR |
| SNR |
more than 52dB |
| Iris Adjust. |
Manual |
| AGC |
LEVEL 0~10 |
| ACE |
OFF / LOW / MIDDLE / HIGH |
| DNR |
OFF / LOW / MIDDLE / HIGH |
| DSS |
OFF / AUTO / X2~X32 |
| OSD Language |
ENG |
| Digital Effect |
OFF / H-MIRROR / V-MIRROR |
| Whitebalance |
AUTO(NORMAL,VIVID,SOFT)/AUTOext/PRESET/MANUAL |
| Shutter |
INDOOR, OUTDOOR, INDOOR-ANTI BLUR, OUTDOOR-ANTI BLUR, FLICKER, MANUAL (11 Steps) |
| Privacy |
OFF / ON (Programmable 10 zones) |
| Defect |
LIVE DPC |
| DE-FOG |
OFF / ON (AUTO, MANUAL-LOW/MIDDLE/HIGH) |
| Smart IR |
OFF / ON |
| IR distance |
45m |
| Environment |
|---|
| OSD Control |
OSD Key |
| Input Voltage |
DC12V(±10%) |
| Power Consumption |
IR OFF : 150mA(MAX) / IR ON : 400mA(MAX) |
| Operation Temp / Humidity |
-10ºC~ +50ºC / MAX 90% RH |
| Storage Temp / Humidity |
-20ºC ~ +60ºC / MAX 90% RH |
| Certifications |
KC |
( * Marks: Scheduled to be supported )
Specifications are subject to change without notice for product improvement.
