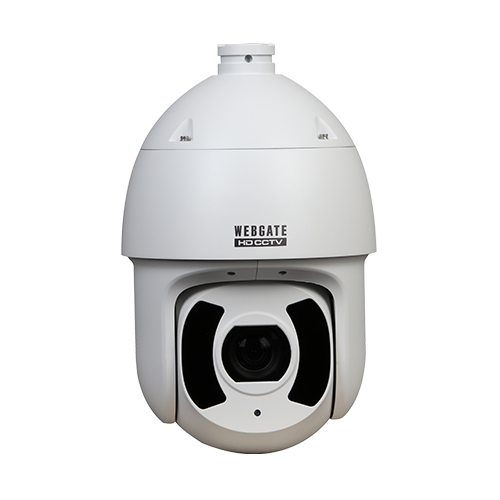

Video Sensor
|
1/2.8" STARVIS™ CMOS
|
|
Sensor Pixels |
1920(H) x 1080(V) = 2M pixels |
|
Scanning System |
Progressive Scan |
|
RAM/ROM |
512M / 128M |
|
Min. Illumination |
Color: 0.005 Lux@F1.6; 0 Lux@F1.6 (IR on) |
|
S/N Ratio |
More than 55 dB |
|
IR Distance |
Up to 200m |
|
IR On/Off Control |
Auto / Manual |
|
IR LEDs |
6 ea |
|
Lens |
|
Focal Length |
4.5mm ~ 135mm |
|
Max. Aperture |
F1.6 ~ F4.4 |
|
Angle of View |
H: 67.8º~ 2.4º |
|
Optical Zoom |
X30 |
|
Focus Control |
Auto / Manual |
|
Close Focus Distance |
100mm ~ 1,000mm |
|
PTZ |
|
Pan/Tilt Range |
Pan: 0º ~ 360º endless, Tilt: -20º ~ 90º, Auto flip 180º |
|
Manual Control Speed |
Pan: 0.1º ~ 200º/s, Tilt: 0.1º ~ 120º/s |
|
Preset Speed |
Pan: 300º/s, Tilt: 200º/s |
|
PTZ Mode |
5 Patterns, 8 Tours, Auto Pan, Auto Scan |
|
Speed Setup |
Human-oriented focal length/speed adaptation |
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|
Idle Motion |
Activate Preset/Scan/Tour/Pattern if there is no command in the specified period |
|
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
|
Intelligence |
|
Auto Tracking |
Support |
|
IVS |
Tripwire, Intrusion, Abandoned/Missing, Face Detection, Heat Map |
|
DORI Distance |
Detect: 1,862m, Observe: 744m, Recognize: 372m, Identify: 186m |
|
Video |
|
Compression |
H.264 / H.264B / H.264H / H.264+
|
|
Streaming Capability |
3 Streams |
|
Resolution |
1920x1080, 1280x960, 1280x720, 705x576/480, 352x288/240 |
|
Frame Rate |
Main stream1: 1920x1080 / 1280x960 / 1280x720 (1 ~ 50/60fps)
Sub stream1: 705x576/480, 352x288/240 (1~25/30fps)
Sub stream2: 1920x1080, 1280x960, 1280x720, 705x576/480, 352x288/240 (1~25/30fps) |
|
Bitrate Control |
CBR / VBR |
|
Bitrate |
H.264+/H.264: 448kbps ~ 8,192kbps
|
|
Day/Night |
Auto (IC) / Color / BW |
|
Backlight Compensation |
BLC / HLC / WDR (120dB) |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
Ultra DNR (2D/3D) |
|
Motion Detection |
Support |
|
Region of Interest |
Support |
|
Electric Image Stabilization (EIS) |
Support |
|
Defog |
Support |
|
Digital Zoom |
X16 |
|
Flip |
180º |
|
Privacy Masking |
Up to 24 areas |
|
Audio |
|
Compression |
G.711a/G.711Mu/AAC/G.722/G.726/G.729/MPEG2-L2 |
|
Network |
|
Ethernet |
RJ-45 (10Base-T/100Base-TX) |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DNS, FTP, IP FILTER, QoS, Bonjour, 802.1x |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max. User access |
20 users |
|
Edge Storage |
NVR, DVR supporting IP camera, MicroSD card 128GB |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Control Center |
|
Smart Phone |
iOS, Android |
|
Interface |
|
Video Interface |
1 port (BNC, 1.0V[p-p], 75Ω), Analog SD |
|
RS485 |
1 |
|
Audio I/O |
1/1 |
|
Alarm I/O |
7/2 |
|
Electrical |
|
Power Supply |
AC 24V/3A (±25%) |
|
Power Consumption |
17W, 26W (IR on, Heater On) |
|
Environmental |
|
Operating Conditions |
-40℃ ~ 70℃ (-40℉ ~ 158℉) / Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
IK10 |
|
Construction |
|
Casing |
Metal |
|

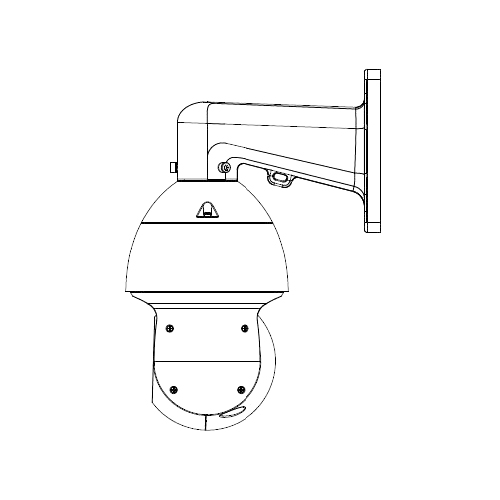

Dimensions |
Φ209 x 337.4 mm |
|
Net Weight |
5.8 kg |
|
Gross Weight |
9.1 kg |
|
Certifications |
|
Certifications |
KC, FCC/CE |
