한 대의 카메라로, 보이지 않던 영역까지 더 넓게

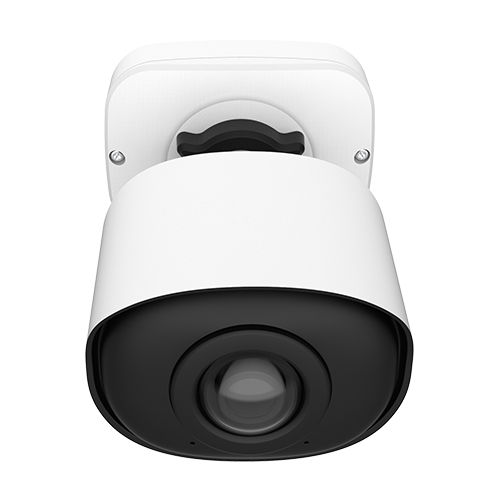

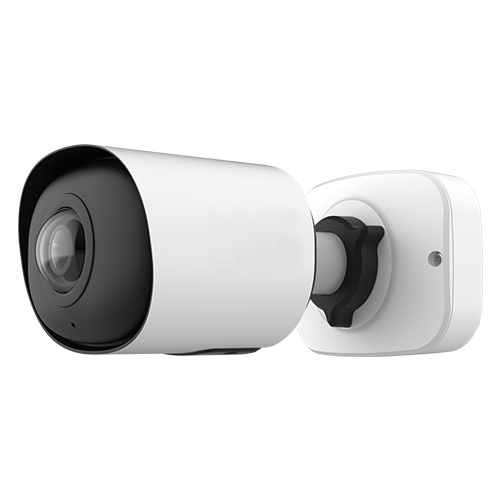

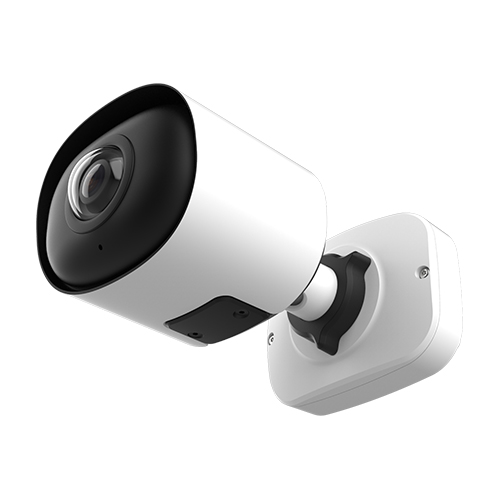

네트워크 180° 파노라믹 카메라
180° 파노라믹 뷰 / 5MP 고해상도 센서 / 스마트 왜곡보정 / 미니멀한 블릿 디자인 / IP67 & IK10

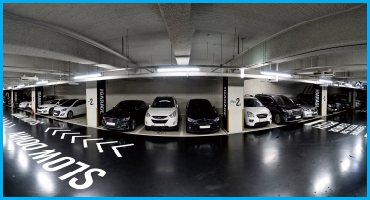

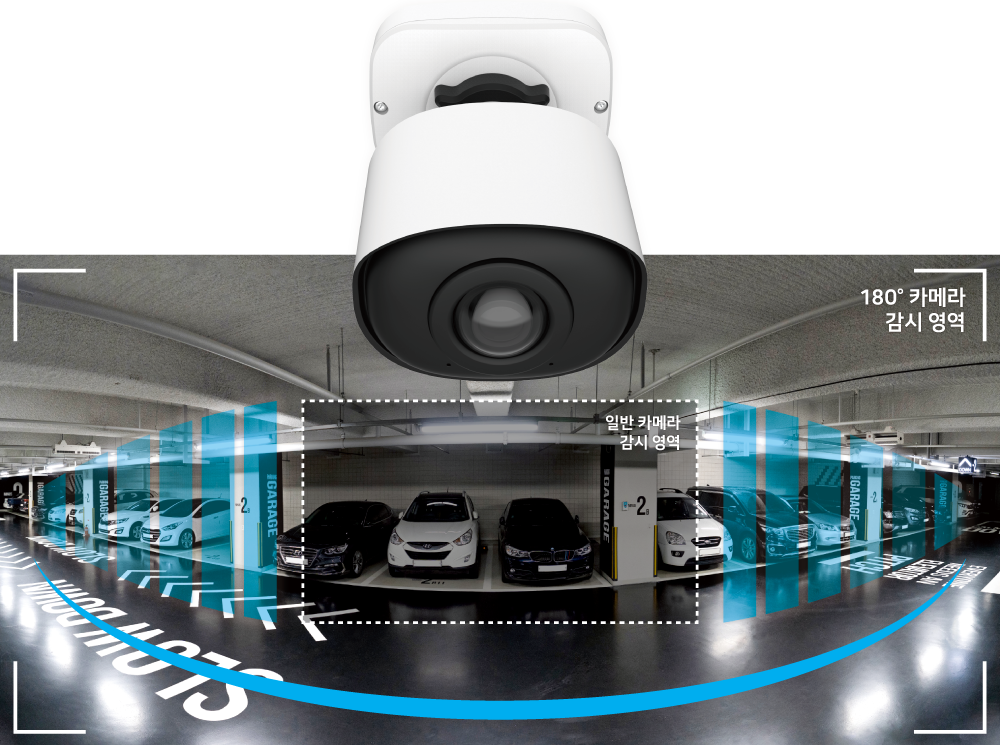

| 180° 파노라믹 카메라 |

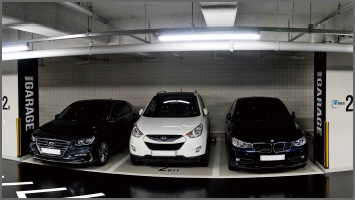

일반 카메라(2.8mm) |
|
|
- 180°의 넓은 화각으로 카메라 한 대로 광범위한 감시 영역 커버
- 사각으로 인한 보안 취약성 보완
- 감시 영역의 전체적인 동선, 분포 등의 현황 파악에 용이
- 최소한의 카메라 설치로 합리적인 보안환경 구축 |
|
CAMERA |
|
Image Sensor |
1/2.8″ Progressive Scan 5MP CMOS |
|
Min. Illumination
|
Color: 0.005Lux@F1.2
B/W: 0Lux with IR on
|
|
WDR |
120dB Super WDR |
|
Lens |
1.68mm@ F2.0 |
|
Mount |
M12 |
|
Field of View |
H180°/V95°
|
|
Shutter Time
|
1/100000s~1s |
|
IR Distance
|
Up to 15m |
|
Day&Night |
ICR Filter Auto Switch
|
|
S/N |
>55dB
|
|
VIDEO |
|
Max. Image Resolution
|
30fps@(2560×1440)
|
|
Primary Stream
|
30fps@(2560×1440, 1920×1080, 1280×720)
|
|
Secondary Stream
|
30fps@(640×480, 640×360, 320×240)
|
|
Tertiary Stream
|
30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320×192, 320×176)
|
|
Video Compression
|
H.264+/H.264/MJPEG
|
|
Video Bit Rate
|
16Kbps∼16Mbps (CBR/VBR adjustable)
|
|
Image Setting
|
Brightness/Contrast/Saturation/Sharpness
|
|
NETWORK |
|
Ethernet
|
1*RJ45 10M/100M Ethernet Port
|
|
Network Storage
|
NAS(Support NFS, SMB/CIFS)
|
|
Protocol
|
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
|
|
AUDIO |
|
Audio Compression
|
G.711/AAC |
|
Audio Interface |
Built-in Microphone
|
|
SYSTEM |
|
Storage |
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
|
|
Advanced Function
|
Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
|
SIP/VoIP Support
|
Yes, Voice & Video-over-IP
|
|
Event Trigger
|
Motion Detection, Network Disconnection, Audio Alarm, etc.
|
|
Event Action
|
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
|
|
System Compatibility
|
ONVIF Profile S & G & T |
|
ENVIRONMENTAL & PHYSICAL |
|
Working Temperature
|
-20℃~50℃ (-4°F~122°F) |
|
Working Humidity
|
0~90%(Non-condensing)
|
|
Power Supply
|
PoE (802.3af)/ DC 12V±10%
|
|
Power Consumption
|
4.1W MAX / 7.1W MAX (With IR on)
|
|
Weather Proof
|
Up to IP67-rated for Weather-resistant Performance
|
|
Housing |
Vandal-proof IK10-rated Metal Housing
|
|
Weight |
630g |
|
Dimensions |
95.8mm×74mm×158.5mm
|
* 제품의 사양은 성능 및 품질 향상을 위해 사전 예고없이 변경 될 수 있습니다.
(Specifications are subject to change without notice for product improvement.)
