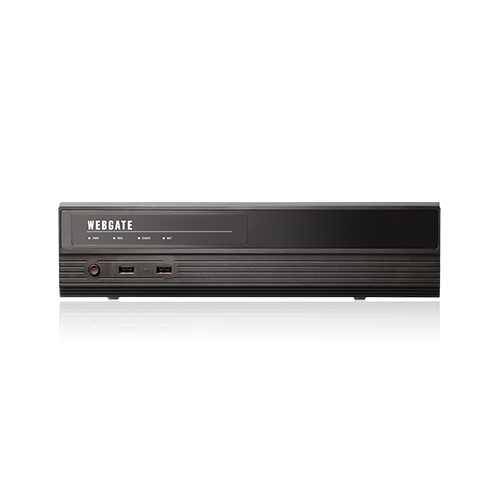

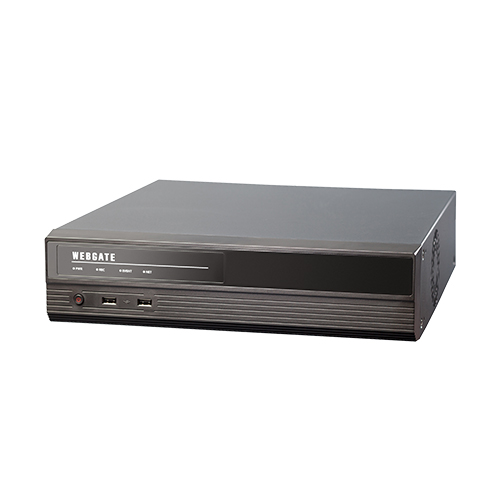

EX-SDI 2.0
기존의 HD-SDI 전송 방식에 VLC(Visually Lossless Codec)을 탑재하여, 화질 저하 없이 전송거리 확장
한 개의 동축케이블(5C-HFBT)을 이용하여 EX-SDI 1.0은 500m, EX-SDI 2.0은 700m 까지 Full-HD 영상 전송
* 케이블 종류별 전송거리 비교
케이블 | 전송거리 | ||
HD-SDI | EX-SDI 1.0 | EX-SDI 2.0 | |
5C-HFBT 7합 (CW도체 / AL편조) | 200m | 500m | 700m |
5C-HFBT 4합 (CW도체 / AL편조) | 150m | 400m | 600m |
ECX 5C2V (CU도체 / CU편조) | 100m | 300m | 500m |
ECX 3C2V (CU도체 / CU편조) | 50m | 200m | 300m |
UTP Cat.5e (SeeEves Passive 발룬) | × | × | 100m |
* 금강 케이블 기준의 자체 테스트 결과이며, 전송거리는 현장 상황이나 케이블 종류에 따른 편차가 있을 수 있습니다. |
전용 VMS 무료 지원
최대 1024대의 DVR 연결, 다양하고 막강한 기능으로 효율적인 원격 모니터링이 가능한 전용 VMS(Control Center) 무료 제공
VIDEO INPUT | ||
---|---|---|
Video input format | BNC |
HD-SDI, EX-SDI, EX-SDI 2.0 AHD 2.0, Analog 960H/SD |
IP(Ethernet) | IP Camera(Onvif) | |
Resolution / Frame Rate |
HD-SDI EX-SDI EX-SDI 2.0 |
1920×1080@30fps 1280×720@30fps / 1280×720@60fps |
AHD 2.0 | 1920×1080@30fps | |
Analog 960H | 960×480@60i | |
Analog SD | 720×480@60i | |
Connectors | 16ch, 75Ω BNC connector | |
VIDEO OUTPUT | ||
Video output |
HDMI VGA |
1, 4, 9, 10, 13, 16 split-screen HDMI : 1920×1080 VGA : 1920×1080, 1280×1024, 1024×768, 800×600 User defined display / Alarm pop-up / Sequential switching |
BNC |
1, 4, 9, 10, 13, 16 split-screen CVBS User defined display / Sequential switching |
|
RECORDING | ||
Compression | H.264 / JPEG | |
Resolution | 1920×1080, 1280×720, 960×480 | |
Rate | Max. 480fps | |
Quality | 10 levels up to 8Mbps | |
Mode | Normal/Event Record, Schedule/Event, Emergency Record | |
Schedule | 24hrs / 7days | |
PLAYBACK | ||
Mode | Instant Playback / Search | |
Speed | Max. 480fps | |
Search type | Date/Time, Calendar/Time-line, Event, Thumbnail(Interval/Motion), Text, Bookmark | |
Block playback | 24hours ~ 99days | |
EVENT & ALARM | ||
Event source | MD(Motion Detection), Sensor, Text, Video Loss | |
Event check schedule | 24hrs / 7days | |
Event action | Relay, Buzzer, E-mail, FTP, Video pop-up, Camera Preset, Mobile Alarm Push | |
MD area | 15×10 | |
Text input | POS/ATM support, AVE VSI Pro/Hydra support | |
SYSTEM ALARM | ||
Alarm source | HDD fail, HDD almost full, Password fail, WRS fail, Fan Fail | |
Alarm action | Warning message, Buzzer, E-mail, Relay, Mobile Alarm Push | |
AUDIO | ||
Input/output | 4 RCA input / HDMI & RCA output | |
Compression | ADPCM (32Kbps, 16KHz, 16bit sampling) | |
Direction | Both | |
PTZ | ||
Protocols |
41 models including C1080(D1080), C1080PT-Z20, Pelco-D, Pelco-P, Samsung, Panasonic andothers
|
|
NETWORK | ||
Interface | 1 Gigabit Ethernet (10/100/1000Mbps) | |
Type | StaticIP, DynamicIP, xDSL, UPnP,RTSP | |
DDNS | WNS, DynDNS, NoIP, WRS | |
Bandwidth limit | Supported | |
NTP | Server / Client / Both | |
Users | 10 Monitoring, 2 Playback | |
Streaming |
H.264 stream, High resolution 1 additional H.264 stream, Normal resolution 1 JPEG stream, Normal resolution for e-mail or mobile |
|
SECURITY | ||
User level | 1 admin, 10 users | |
User privilege | Menu, PTZ, Relay, Playback, Power, Copy, Network MIC | |
IP filtering | Supported | |
STORAGE & BACKUP | ||
Storage devices |
2 internal SATA HDDs, 1 external eSATAInterface, Gigabit network for NS04R
|
|
RAID Level | External storage including NS04R(Level 1/5/10) | |
File system | Proprietary file system, Data-loss protection against power-failure | |
Capacity |
Max. 32TB with eSATA, Max. 128TB with cascaded NS04R 8TB HDD Supported |
|
Backup type | Multi-channel exe file, Single channel avi file, JPEG(Capture) | |
Backup device | USB 2.0 drive (2 ports) | |
S.M.A.R.T. | Temperature and Health checking | |
SERIAL & I/O | ||
Serial port | 1 RS-232C, 2 RS-485 | |
Sensor input | 16 Dry-contacts | |
Relay output | 2 Relays | |
CONTROLLER | ||
Device | IR remote controller, Joystick Keyboard, Mouse | |
SOFTWARE | ||
Web viewer | Plug-in free HTML5 WebViewer | |
Java viewer | Monitoring / Event / PTZfor IE, Chrome, Safari,Mac OS X | |
Mobile viewer | Monitoring / Playback / Alarm Push / PTZ/ Audio / Log View with iPhone & Android | |
CMS | Control Center, Max. 1024 units | |
SDK | ActiveX(COM) SDK | |
ENVIRONMENTAL & PHYSICAL | ||
Dimension | 350(W) × 393(D) × 88(H) mm | |
Weight | 8 Kg (No HDD) | |
Operating temperature | 5°C~45°C (41°F ~ 113°F) | |
Operating humidity | 80% below, free of condensation | |
Power | DC 12V/5A | |
Power consumption | Max. 50W, Typical 40W(1 HDD) | |
Approval | KC, FCC, CE, RoHS |
* 제품의 사양은 성능 및 품질 향상을 위해 사전 예고없이 변경 될 수 있습니다.
