| Video |
| Compression |
H.265, H.264 |
| Max. Resolution |
2MP
|
| Bitrate
|
32Kbps ~ 6Mbps
|
| Bitrate Control
|
VBR / CBR
|
| Streaming(Framerate)
|
Stream 1 : 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Stream 2 : 30fps (704 × 480, 704 × 240, 640 × 360, 352 × 240)
|
| Camera |
| Image Sensor
|
1/2.8″ CMOS
|
| Max. Resolution
|
19200 (H) × 1080 (V)
|
| Electronic Shutter
|
1/1s ~ 1/100000s
|
| Min. Illumination |
Color |
0.02Lux @ (F1.6, AGC ON)
|
| B/W |
0 Lux with IR
|
| Lens |
Day & Night
|
True Day & Night
|
| Type |
Fixed
|
| Focal Length
|
2.8mm |
| Angle |
H : 104.9°
V : 56.5°
D : 119.2° |
| Features
|
Day/Night
|
Auto / Color / B&W / Extern / Low Light Color
|
| Image Enhancement |

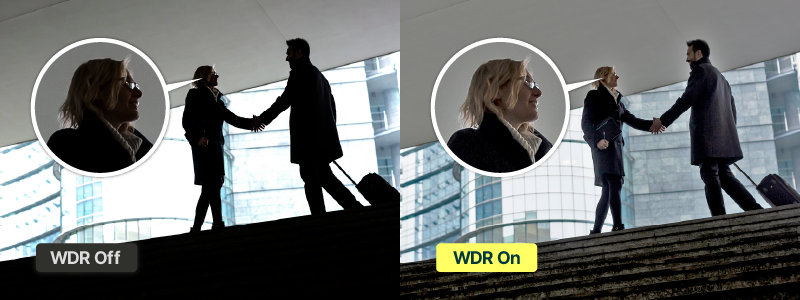

WDR, HLC, BLC
|

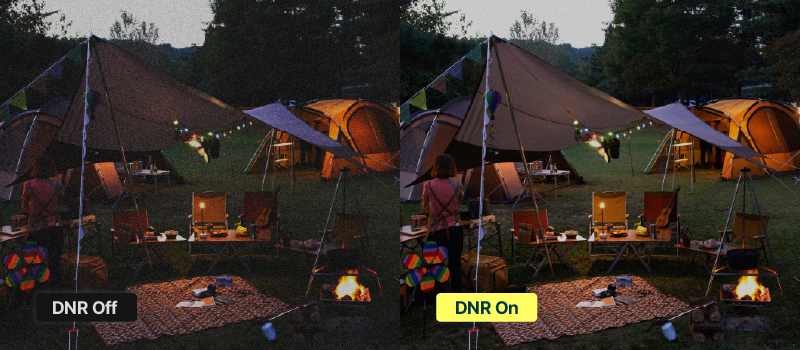

| DNR
|
Support |
| Mirror
|
left/right (Horizontal), top/bottom (Vertical)
|
| White Balance |
Auto / AutoExt / Preset / Manual
|
| Privacy Mask
|
Support |
| Event |
Motion, Mask(Tempering), Other Alarms |
| DE-FOG
|
Support |
| AI
|
Line Crossing, Intrusion |
| Light |
Dual Light(IR & White LED)
|
| IR distance
|
50m |
| OSD |
Support |
| Input / Output |
| Alarm |
Input |
Not Supported |
| Output |
Not Supported |
| Video Output
|
Not Supported |
| Audio |
Input |
Built-in Mic |
| Output |
Not Supported |
| Storage
|
Not Supported |
| System |
| Management |
System log, Import/Export settings, Time setting |
| Upgrade |
Iptool upgrade, Webpage upgrade |
| Maintenance |
Factory reset, Reboot, Basic reset |
| Webpage Language
|
Korean, English
|
| Network & Software
|
| Network & Software
|
Ethernet |
RJ-45 |
| Port |
HTTP : 80 / HTTPS : 443 / RTSP : 554 |
| Protocol
|
HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, NTP, TLS, QoS, IPv4, FTP, RTSP |
| IP Camera Protocol
|
ONVIF |
| Simultaneous Live View
|
Up to 2 streams with Onvif |
| Web Browser
|
Chrome, Edge, Safari, Firefox (HTML5 Support) |
| PC CMS Software
|
Control Center, Control Center Pro |
| Mobile Viewer
|
Support (Android, iOS) with DVR/NVR |
| Relay Server
|
Not Supported |
| Security |
Online user, IP address filtering, Illegal login lock |
| Environment
|
| Power |
DC 12V ± 25%, PoE (802.3af) |

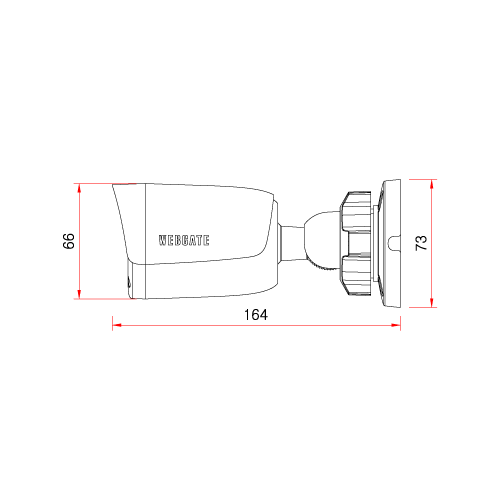

| Dimension |
73 (W) × 73 (H) × 164 (D) mm |
| Power Consumption |
< 7W |
| Operation Temperature
|
-30°C ~ 60°C (-22°F ~ +140°F) |
| Operation Humidity
|
0% RH ~ 95% RH |
| Protection
|
IP67(*) |
| Certifications |
KC |
| Weight |
300g
|
