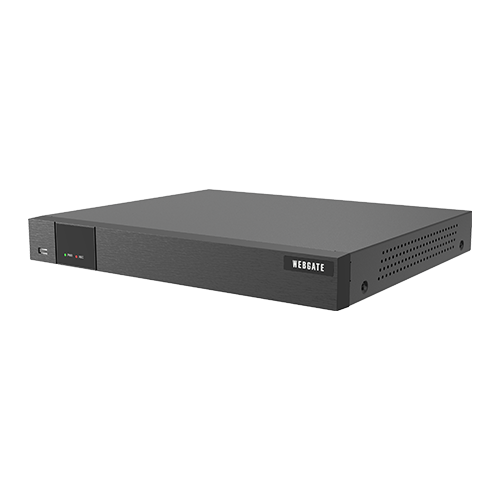

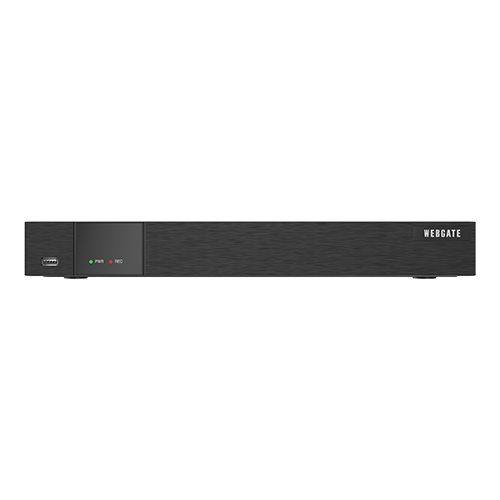

Video input format |
BNC |

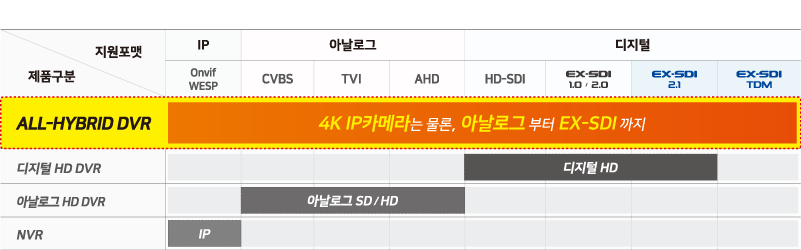

HD-SDI, EX-SDI(1.0 / 2.x / 3.0), AHD, TVI, CVBS(960H,SD) |
|
IP(Ethernet) |
WESP, Onvif Profile S |
|
H.264, H.265 |
|
Resolution / Frame Rate |
HD-SDI |
1920×1080@30fps, 1920x1080@25fps |
EX-SDI 1.0
EX-SDI 2.0 |
1920×1080@30fps, 1920x1080@25fps |
|
EX-SDI 2.1 |
2560×1440@30fps, 2560×1440@25fps
3840×2160@30fps, 3840×2160@25fps |
|
EX-SDI 3.0 |
3840×2160@30fps, 3840×2160@25fps |
|
EX-SDI TDM 1.1 |
Not supported |
|
AHD |
1920×1080@30fps, 1920x1080@25fps
2560×1440@30fps, 2560x1440@25fps
2560x1944@20fps, 2560x1944@20fps
3840×2160@15fps, 3840x2160@12fps |
|
TVI |
1920×1080@30fps, 1920x1080@25fps
2560×1440@30fps, 2560x1440@25fps
2560x1944@20fps, 2560x1944@20fps
3840×2160@15fps, 3840x2160@12fps |
|
CVBS(960H) |
960×480@60i, 720×480@60i
960×576@50i, 720×576@50i |
|
IP |
1st stream: 704x576~3840x2160
2nd stream: 352x240~1280x720 |
|
Connectors |
8ch, 75Ω BNC connector |
|
CoC |
Control over Coax@HD-SDI, EX-SDI1.0/2.x/3.0, AHD,TVI |
|
VIDEO OUTPUT |
|
Video output |
Resolution |
HDMI : 3840×2160, 1920×1080
VGA : 1920×1080, 1280×1024, 1024×768
BNC(CVBS) : 720×480, 720×576 |
|
Mode |
HDMI main + VGA spot
HDMI main + CVBS spot
HDMI/VGA Duplicate
HDMI/CVBS Duplicate
HDMI main + VGA(Service Channel)
HDMI main + CVBS(Service Channel)
|
|
BNC(CVBS) |
1, 4, 9 split-screen, Switching |
|
BNC(SDI) |
Not supported |
|
RECORDING |
|
Compression |
H.265 / H.264 / MJPEG |
|
Resolution |
3840×2160, 1920x2160, 2560x1944, 2560×1440, 1280x1440, 1920×1080, 1280x720, 640x360 |
|
Rate |
Total 240fps, Max. 30fps/ch @1920×1080
Total 240fps, Max. 30fps/ch @2560×1440
Total 120fps, Max. 30fps/ch @3840×2160 |
|
Quality |
10 levels up to (Default -Q7)
- H.264 : 4Mbps@2M, 6Mbps@4M, 6Mbps@5M, 8Mbps@8M
- H.265 : 3Mbps@2M, 4Mbps@4M, 4Mbps@5M, 6Mbps@8M |
|
IP Camera |
Max Bitrate 24Mbps (Main Stream) / 3.6Mbps(Sub Stream) |
|
Mode |
Normal/Event Record, Schedule/Event Record, Emergency Record |
|
Schedule |
24hrs / 7days |
|
PLAYBACK |
|
Mode |
Instant Playback / Search |
|
Speed |
Total 240fps, Max. 30fps/ch @1920×1080
Total 240fps, Max. 30fps/ch @2560×1440
Total 120fps, Max. 30fps/ch @3840×2160 |
|
Search type |
Date/Time, Calendar/Time-line, Event, Thumbnail(Time/Motion), Text, Bookmark |
|
Block playback |
1day ~ 365days |
|
EVENT & ALARM |
|
Event source |
Motion detection, Sensor input, Video Loss, Text input, AI, Flame, Thermal, System |
|
Event check schedule |
24hrs / 7days |
|
Event action |
Relay, Buzzer, E-mail, FTP, Video pop-up, Camera Preset, Mobile Alarm Push, System alarm |
|
MD area |
15×10 |
|
Text input |
POS/ATM support, AVE VSI Pro/Hydra support |
|
SYSTEM ALARM |
|
Event source |
HDD fail. HDD almost full, Password fail, WRS/DDNS fail, Recording Fail, NTP Sync Fail |
|
Event action |
Pop-up Message, Buzzer, E-mail, Mobile Alarm Push |
|
AUDIO |
|
Input/output |
4 RCA input / HDMI & RCA output |
|
Compression |
G.711 |
|
Direction |
Both |
|
PTZ |
|
Protocols |
HDD fail. HDD almost full, Password fail, WRS/DDNS fail, Recording Fail, NTP Sync Fail |
|
NETWORK |
|
Interface |
1 Gigabit Ethernet (10/100/1000Mbps) |
|
Type |
Static IP, Dynamic IP, xDSL |
|
DDNS |
WNS, DynDNS, NoIP, WRS |
| Tx Bandwidth limit |
1 ~ 77Mbps |
|
NTP |
Server / Client / Both |
|
Users |
Total 10 Users (Monitor + Playback) Playback 3 Users |
|
RTSP |
Supported |
|
UPnP |
UPnP auto port forwarding |
|
Streaming |
H.264 stream, H.265 stream High resolution
1 additional H.264 stream, H.265 stream Normal resolution
1 JPEG stream, Normal resolution |
|
Service streaming |
Service Channel or Remote DVR |
|
TLS |
Supported |
|
SECURITY |
|
User level |
1 admin, 10 users |
|
User privilege |
Menu, PTZ, Relay, Playback, Power off, Copy, Network MIC, Camera setup |
|
IP filtering |
Supported |
|
STORAGE & BACKUP |
|
Storage devices |
2 internal SATA HDDs, 1 external eSATA Interface, Supported UHS04R |
|
RAID Level |
External storage including UHS04R (Level 1/5/10) |
|
File system |
High-performance proprietary file system
Safe data protection in power interrupt
Safe HDD head parking in power interrupt |
|
Capacity |
Max. 128TB with eSATA, Max. 256TB with cascaded UHS04R
20TB HDD Supported per SATA Port |
|
Backup type |
Multi-channel exe file, Single channel avi file, JPEG(Capture) |
|
Backup device |
1 USB 3.0 Drive (rear), 2 USB 2.0 drive (front, rear)
FAT32(Max 32GB), NTFS (Max 1TB) |
|
S.M.A.R.T. |
Health checking and alarm, Reallocation sector monitoring and alarm |
|
SERIAL & I/O |
|
Serial port |
1 RS-485 |
|
Sensor input |
4 Dry-contacts + Sensor of IP Camera |
|
Relay output |
Software-controlled 2 relay outputs
Max 250V AC / 3A, 30V DC / 3A |
|
CONTROLLER |
|
Device |
IR remote controller(option), Joystick Keyboard(option), Mouse |
|
SOFTWARE |
|
HTML5 Webviewer |
Monitoring / Event / PTZ / Playback for browser supporting HTML5 |
|
WebViewer |
Monitoring / Event / PTZ / Playback for IE |
|
Mobile viewer |
Monitoring / Playback / Alarm Push / PTZ / Audio / Log View with iPhone & Android |
|
CMS |
Control Center, Max. 1024 units |
|
SDK |
HTML5 SDK, ActiveX(COM) SDK |
|
ENVIRONMENTAL & PHYSICAL |
|
Dimension |
378(W) × 317.4(D) × 51(H) mm |
|
Weight |
2.35 Kg (No HDD) |
|
Operating temperature |
5°C~45°C (41°F ~ 113°F) |
|
Operating humidity |
80% below, free of condensation |
|
Power |
DC 12V / 5A |
|
IPFR |
Supporting IPFR (Intelligent Power Failure Recovery) |
|
Power consumption |
Typical 13.5W (w/o HDD) |
|
Approval |
KC, FCC, CE |
