| Video |
|---|
| Compression |
H.265(HEVC) main@L5.1,
H.264(AVC) baseline/main/high@L5.2, MJPEG |
| Resolution |
Stream 1: 2592×1944, 2560×1440, 1920×1440, 1920×1080
Stream 2: 1280×960, 1280×720, 640×480, 640×360
Stream 3: 640×480, 640×360, 320×240, 320×184
Stream 4: 1280×960, 1280×720, 640×480, 640×360 |
| Bitrate |
100Kbps ~ 10Mbps |
| Bitrate Control |
CBR |
| Frame Rate |
Max. 30fps@5M(2592×1944) |
| GoP |
Max. 120 |
| Streaming |
Stream 1 : 1920×1080 ~ 2592×1944 30fps
Stream 2 : 640×360 ~ 1280×960 30fps
Stream 3 : 320×184 ~ 640×480 30fps
Stream 4 : 640×360 ~ 1280×960 (MJPEG) / 5fps |
| Camera |
|---|
| Image Sensor |
1/2.8” 5.1Megapixel Starvis CMOS Sensor |
| Max. Resolution |
2592(H) × 1944(V) = 5.1M pixels |
| Video Output |
Progressive Scan |
| Min. Illumination |
Color |
0.02Lux@50IRE, F1.3 |
| B/W |
0.0005Lux@50IRE, F1.3, 0Lux(IR LED On) |
| Lens |
Day & Night |
True Day & Night |
| Type |
f=2.8mm Fixed Mega Pixel Lens |
| Angle |
H: 91° / V: 71° / D: 122° |
| Features |
Day/Night |
Auto / Color / B&W / Extern / Low Light Color / Scheduled Switch
|
| Auto Focus |
Not Support
|
| Image Enhancement |
WDR(120dB), BLC, HLC |
| AGC |
Support |
| SNR |
More than 52dB |
| ACE |
Support |
| DNR |
Support |
| DSS |
OFF / x2 / x4 / x8 / x16 / x32 / x64 |
| SHARPNESS |
0~255 |
| Mirror |
Horizontal, Vertical |
| Whitebalance |
Auto / AutoExt / Preset / Manual |
| Shutter |
INDOOR, OUTDOOR, INDOOR-ANTI BLUR, OUTDOOR-ANTI BLUR, MANUAL(1/30~1/30000, 11steps) |
| Privacy Mask |
Support (Max. 8) |
| Event |
Flame detection, Motion detection, Tampering detection, Smart MD |
| DE-FOG |
Support |
| AI feature |
Intrusion detection, Line crossing, Loitering / Fall down(*Option) / Smoke(*Option) |
| IR distance |
30m |
| OSD |
Size |
16 ~ 250 pixel |
| Color |
Black, Blue, Green, Red, Yellow, White |
| Position |
Adjustable |
| Input / Output |
|---|
| Alarm |
Input |
1 TTL level (3.3V) |
| Output |
1 Relay (48V/1A)
|
| Video Output |
Output |
CVBS 1.0 Vp-p / 75Ω composite |
| Resolution |
720×480@60i, 720×576@50i |
| Audio |
Output |
1 RCA (1 Vpp) |
| Compression |
G.711 u-law (64Kbps, 8KHz, 16bit Sampling) |
| System |
|---|
| User |
Access rights per account, initialize password, Account Add/Delete/Modify |
| Management |
System log, Time setting |
| Upgrade |
Iptool upgrade, Webpage upgrade, Emergency upgrade |
| Maintenance |
Initialize Settings, Restart, Initialize partial settings, scheduled reboot (*) |
| Webpage Language |
Korean, English |
| Network & Software |
|---|
| Network & Software |
Ethernet |
RJ-45 (10/100BASE-T) |
| Network Type |
Fixed IP, DHCP |
| DDNS |
WNS(*), WRS(*) |
| Port |
HTTP : 80 / HTTPS : 443 / Onvif : 80 / RTSP : 554 |
| Protocol |
HTTP, HTTPS, RTSP/RTP, TCP/IP, UDP, ARP, ICMP, DHCP, NTP, UPnP (*) |
| IP Camera Protocol |
Onvif Profile S, WESP |
| Simultaneous Live View |
Up to 2 streams with NVR(Onvif/WESP)
Up to 7 streams with WEB
Up to 4 streams with RTSP |
| DST |
Support |
| Web Browser |
Chrome, Edge, Safari, Firefox |
| Web settings |
Desktop (Mac, Linux and Windows) and multi-platform web setup |
| PC CMS Software |
Control Center, Control Center Pro |
| Mobile Viewer |
Support (Android, iOS) |
| Relay Server |
WinRDS |
| Security |
TLS |
Support |
| User Access Logs |
Support |
| IP address filter |
Support |
| Session Close |
Support(*) |
| Environment |
|---|
| Power |
PoE(802.3af) |

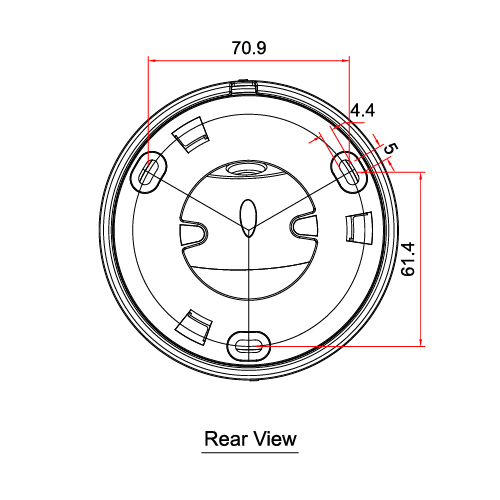

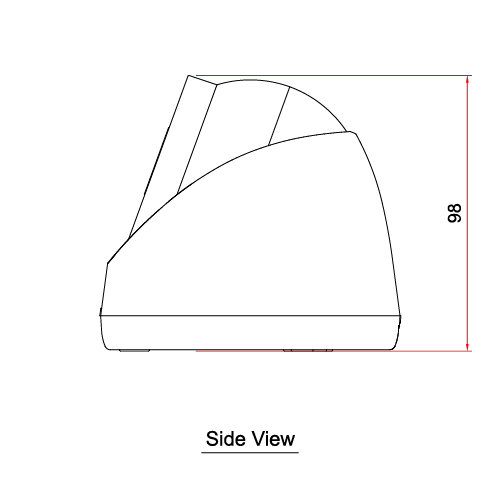

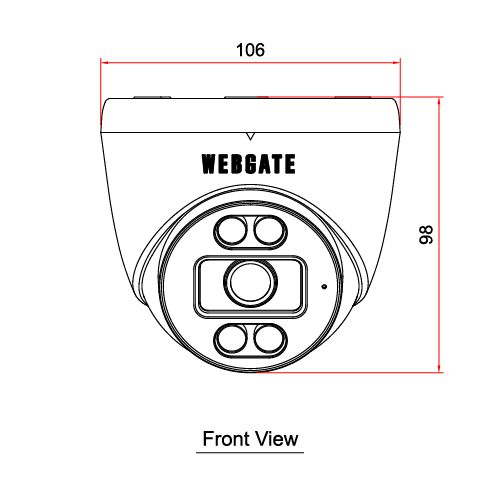

| Dimension |
Ø106 x 98 mm |
| Power Consumption |
DC : IR OFF : 3W - Standard / IR ON : 5W - Max
PoE : IR OFF : 5.5W - Standard / IR ON : 7.5W - Max |
| Operation Temperature |
-10°C ~ 45°C(+14°F ~ +113°F) |
| Operation Humidity |
0% RH ~ 80% RH |
| Certifications |
KC, FCC, CE |
| Weight |
250g |
