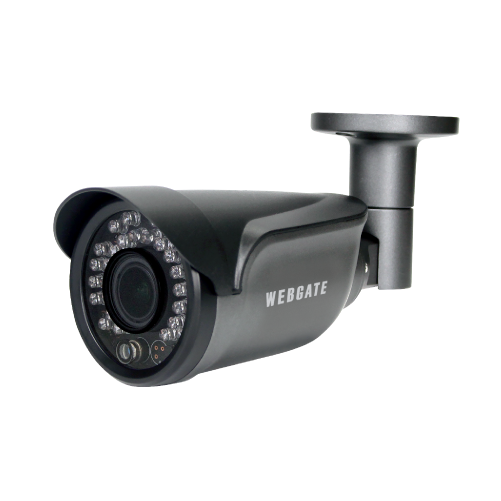

Flame Detection Camera NK2200BL-F2

Integrated flame-detection and thermal imaging camera
Dedicated IR flame sensor reduces false alarms
100°wide coverage, up to 30m detection range
SONY STARVIS supersensitive sensor
3DNR (Noise reduction)
True WDR (120dB)
DeFog function
H.265 / H.264 Support
Developed and manufactured by Korea
Korea SoC

Overview
Specification
Download

CCTV integrated Fire Detection Solution
Real Footage of Fire Detection

WEBGATE’s fire detection solution
Webgate’s fire detection solution is equipped with a hardware flame/heat detection sensor in a video surveillance camera to enable accurate and fast fire detection, quick notification, and real-time monitoring.

Flame detection sensor

Quick detection time

Real-time push alerts

Accuracy		Over 99% accuracy, minimize false alarm

Speed		Fast detection time within 1 second

Intuition		Check the extent of fire with sensitivity gauge

Efficiency		Sensing with real-time visuals

Stability		Applying high-performance Korean AI SoC

Parking lot electric vehicle fire detection and alarm with CCTV integrated flame detection camera powered by Korean SoC

NDAA compliant security camera, meeting National Defense Authorization Act standards for secure video surveillance

CCTV integrated Fire Detection Solution
System Configuration

Real-time fire detection with thermal and flame detection cameras, CCTV, and alarm notifications to remote PC and mobile

CCTV integrated Fire Detection Solution
Comparison by Detection Method

Higher accuracy and faster detection than flame detectors and video analysis, at a reasonable price

CCTV integrated Fire Detection Solution
Major features of Flame Detection Camera

Flame detection with dedicated sensor - High accuracy by detecting the flame’s unique wavelength - Low false rate compare to video analysis method which analyzes color and shape - Optimum algorithm from 5 years experience in field

Flame detecting gauge - Detecting gauge displays flame status visibly - Real-time check for malfunctioning of product

Detection time - Min. 1sec for flame detection, sensitivity is adjustable (~10sec) - Video analysis type requires min. 10sec for analysis

Advanced fire detection performance - Quick and accurate detection by specialized AI technology and a dedicated flame detection IR sensor - Reliable AI events by applying high-performance Korean AI SoC - Feature NK2200-F1&F2 : Not support AI NK2100-F1&F2, NK5100-F1&F2 : Object Detection, Intrusion Detection, Line Crossing, Loitering, SMD / Fall down(Option) / Smoke(Option)

CCTV integrated Fire Detection Solution
Major Features of solution

Fire Detection Alarm - Fire detection alarm is displayed on monitoring image real-time - Rapid reaction toward fire with various warning alarms from PC, Mobile app and linked devices such as light and audio

Real-time Video Monitoring and Recording / Playback - Real-time video verification in the control room or client site (PC or mobile app) - Verification on the fire scene through recorded video playback (from recorder)

Real-time Fire Alarm Server (WinRDS) - Real-time fire alarm notification along with video to a large number of users (Android, iOS) - Personal information protection : To send alarm notification only when the fire detected - Video access rights per specific person or group to strengthen privacy protection

CCTV integrated Fire Detection Solution
Real-time fire detection and push alarm

Real-time CCTV monitoring and fire detection, sensitivity gauge rises after flame detection, remote PC and mobile alerts

CCTV integrated Fire Detection Solution
Specification

Type	Photo	Model	Specification
Flame Detection Camera		NK2100BL-AF-F2	◼ Outdoor/Indoor ◼ 2M AI Network flame detection camera ◼ Auto focus 2.7~12mm / IR 45m / Sensor 2pcs

		NK2100ED-F1	◼ Indoor ◼ 2M AI Network flame detection camera ◼ Fixed 3.6mm / IR 30m / Sensor 1pcs

		NK2100EX-F2	◼ Explosion proof ◼ 2M AI EX Proof Flame Detection Camera ◼ Fixed 3.6mm / Sensor 2pcs

		NK2200BL-F2	◼ Outdoor/Indoor ◼ 2M Network flame detection camera ◼ Fixed 2.8mm / IR 45m / Sensor 1pcs

		NK2200ED-F1	◼ Indoor ◼ 2M Network flame detection camera ◼ Fixed 2.8mm / IR 30m / Sensor 1pcs

		NK1080BL-F2	◼ Outdoor/Indoor ◼ 2M Network flame detection camera ◼ Fixed 2.8mm / IR 40m / Sensor 2pcs

		TTA-NK2000ED-F1	◼ Indoor ◼ 5M AI Network flame detection camera ◼ Fixed 2.8mm / IR 30m / Sensor 1pcs

		TTA-NK2000ED-F1	◼ Indoor ◼ 5M AI Network flame detection camera ◼ Fixed 2.8mm / IR 30m / Sensor 2pcs

Flame Detection Camera (EX-SDI)		K1080BL-AF-F2	◼ Outdoor/Indoor ◼ 2M EX-SDI(HD-SDI) flame detection camera ◼ Auto focus 2.7~12mm / IR 40m / Sensor 2pcs

		C1080D-F1	◼ Indoor ◼ 2M EX-SDI(HD-SDI) flame detection camera ◼ Fixed 3.6mm / IR 30m / Sensor 1pcs

		K1080PBL-AF-F2	◼ Outdoor/Indoor ◼ 2M EX-SDI(HD-SDI) flame PoC detection camera ◼ Auto focus 2.7~12mm / IR 40m / Sensor 2pcs

		C1080PD-F1	◼ Indoor ◼ 2M EX-SDI(HD-SDI) flame PoC detection camera ◼ Fixed 3.6mm / IR 60m / Sensor 1pcs

Heat Detection Camera		NK1080BL-T450	◼ 2M Network Thermal Detection Camera ◼ Fixed 3.6mm / IR 40m / Max. 450℃

Recorder		NVR / DVR	◼ Pop up and push alarm in case of fire detection event ◼ Selectable playback of flame detection event

CCTV integrated Fire Detection Solution
Case Study

DS Neolux	ECOPRO BM	Korea Land & Housing Corporation(LH)

DAEWOONG BIO Inc.	LG Chem.	Korea Management Corporation.(Gangdong-Gu)

More Case Study

영문(English)

[제품사양]

불꽃감지
탐지 방법		불꽃 IR 센서 (1개)
감지 거리 및 각도		30M / 100° (화원의 크기 1.5M / 감도 10)
감도		1~15
감지 시간		1, 3, 5, 10 초
이벤트 동작 시간		5 ~ 60 초
비디오
비디오 압축		H.265(HEVC) main@L5.1, H.264(AVC) baseline/main/high@L5.2, MJPEG
해상도		스트림1 : 1920×1080 스트림2 : 640×360 ~ 1280×720 스트림3 : 320×184 ~ 640×360 스트림4 : 1280×720
비트레이트		100Kbps ~ 10Mbps
비트레이트 제어		CBR
프레임레이트		최대 30fps@1080p
GoP		최대 120
스트리밍		스트림1 : 1920×1080 / 30fps 스트림2 : 640×360 ~ 1280×720 / 30fps 스트림3 : 320×184 ~ 640×360 / 50fps 스트림4 : 1280×720 / 5fps
카메라
이미지센서		1/2.8” 2.1Megapixel Starvis CMOS Sensor
최대 해상도		1920(H) × 1080(V) = 2.1M pixels
영상출력		순차 주사 방식 (Progressive Scan)
최저조도	칼라	0.02Lux@50IRE, F1.3
최저조도	흑백	0.0005Lux@50IRE, F1.3, 0Lux(IR LED On)
렌즈	Day & Night	True Day & Night
	타입	f=2.8mm Fixed Mega Pixel Lens
	화각	H: 101.34° / V: 54.46° / D: 119.72°
카메라 기능	Day/Night 전환	자동 / 색상 / 흑백 / 외부 / 저조도 / 스케줄 변경
	자동 포커스	미지원
	역광보정	WDR(120dB), BLC, HLC
	자동이득제어(AGC)	지원
	신호 대 잡음비(SNR)	52dB 이상
	명암비 개선(ACE)	지원
	노이즈제거(DNR)	지원
	슬로우셔터(DSS)	OFF / x2 / x4 / x8 / x16 / x32 / x64
	선명도(SHARPNESS)	0~255
	영상회전(Mirror)	좌/우(Horizontal), 상/하(Vertical)
	화이트밸런스	자동 / 자동 확장 / 사전 설정 / 수동
	셔터	실내, 실내-흐림방지, 실외, 실외-흐림방지, 깜빡임 방지, 수동 (1/30~1/30000, 11steps)
	프라이버시 마스크	지원 (최대 8개)
	이벤트	움직임 감지, 탬퍼링 감지
	안개제거(DE-FOG)	지원
	AI 기능	미지원
	IR거리	45m
카메라 타이틀(OSD)	크기	16 ~ 250 pixel
	색	검정, 파랑, 녹색, 빨강, 노랑, 흰색
	정렬	위치 변경 가능 (Adjustable)
입출력
알람	입력	미지원
알람	출력	미지원
비디오 출력	출력 방식	미지원
비디오 출력	해상도	미지원
오디오	출력 방식	미지원
오디오	압축	미지원
시스템
계정		계정별 접근권한 설정, 비밀번호 초기화, 계정 추가/삭제/수정
관리		시스템 로그, 시간 설정
업그레이드		Iptool 업그레이드, 웹페이지 업그레이드, 비상 업그레이드
유지보수		설정 초기화, 재시작, 일부 설정만 초기화, 스케줄 재부팅(*)
웹페이지 언어		한국어, 영어, 일본어
네트워크 & 소프트웨어
네트워크 & 소프트웨어	이더넷	RJ-45 (10/100BASE-T)
	네트워크 타입	고정 IP, 자동할당 IP(DHCP)
	DDNS	WNS(), WRS()
	포트	HTTP : 80 / HTTPS : 443 / Onvif : 80 / RTSP : 554
	네트워크 프로토콜	HTTP, HTTPS, RTSP/RTP, TCP/IP, UDP, ARP, ICMP, DHCP, NTP, UPnP (*)
	카메라 프로토콜	Onvif Profile S, WESP
	동시접속 스트리밍	NVR(Onvif/Wesp) 최대 2대 WEB 최대 7개 RTSP 최대 4개
	일광 절약 시간제(DST)	지원
	웹 브라우저	Chrome, Edge, Safari, Firefox
	웹 뷰어	HTML5 플러그인 프리 웹뷰어(맥, 리눅스, 윈도우 지원)
	PC CMS 소프트웨어	Control Center, Control Center Pro
	모바일 뷰어	지원(Android, iOS)
	릴레이 서버	WinRDS
보안	TLS	지원
	사용자 접속 로그	지원
	IP주소 필터링	지원
	세션 잠금	지원(*)
동작 환경 및 전원
전원		DC 12V /1A, PoE(802.3af)
치수		81(W) ×79(H) ×242(D) mm
소비전력		7W
사용 온도		-25°C ~ 60°C(-13°F ~ +140°F)
동작 습도		0% RH ~ 80% RH
인증		KC
무게		460g

QA1.0

( * 표시: 지원 예정 )
제품의 사양은 성능 및 품질 향상을 위해 사전 예고 없이 변경될 수 있습니다.

[Specification]

Flame Detector
Detection Method		Flame IR sensor (1)
Detection Distance & Angle		30M / 100°(Size 1.5M / Sensitivity 10)
Sensitivity		1~10
Detection Time		1, 3, 5, 10 sec
Action Time		5 ~ 60 sec
Video
Compression		H.265(HEVC) main@L5.1, H.264(AVC) baseline/main/high@L5.2, MJPEG
Resolution		Stream1 : 1920×1080 Stream2 : 640×360 ~ 1280×720 Stream3 : 320×184 ~ 640×360 Stream4 : 1280×720
Bitrate		100Kbps ~ 10Mbps
Bitrate Control		CBR
Frame Rate		Max. 30fps@1080p
GoP		Max. 120
Streaming		Stream1 : 1920×1080 / 30fps Stream2 : 640×360 ~ 1280×720 / 30fps Stream3 : 320×184 ~ 640×360 / 30fps Stream4 :1280×720(MJPEG) / 5fps
Camera
Image Sensor		1/2.8” 2.1Megapixel Starvis CMOS Sensor
Max. Resolution		1920(H) × 1080(V) = 2.1M pixels
Video Output		Progressive Scan
Min. Illumination	Color	0.02Lux@50IRE, F1.3
Min. Illumination	B/W	0.0005Lux@50IRE, F1.3, 0Lux(IR LED On)
Lens	Day & Night	True Day & Night
	Type	f=2.8mm Fixed Mega Pixel Lens
	Angle	H: 101.34°/ V: 54.46°/ D: 119.72°
Features	Day/Night	Auto / Color / B&W / Extern / Low Light Color / Scheduled Switch
	Auto Focus	Not Support
	Image Enhancement	WDR(120dB), BLC, HLC
	AGC	Support
	SNR	More than 52dB
	ACE	Support
	DNR	Support
	DSS	OFF / x2 / x4 / x8 / x16 / x32 / x64
	SHARPNESS	0~255
	Mirror	Horizontal, Vertical
	Whitebalance	Auto / AutoExt / Preset / Manual
	Shutter	INDOOR, OUTDOOR, INDOOR-ANTI BLUR, OUTDOOR-ANTI BLUR, MANUAL(1/30~1/30000, 11steps)
	Privacy Mask	Support (Max. 8)
	Event	Motion detection, Tampering detection
	DE-FOG	Support
	AI feature	Not Support
	IR distance	45m
OSD	Size	16 ~ 250 pixel
	Color	Black, Blue, Green, Red, Yellow, White
	Position	Adjustable
Interfaces
Alarm	Input	Not Support
Alarm	Output	Not Support
Video Output	Output	Not Support
Video Output	Resolution	Not Support
Audio	Output	Not Support
Audio	Compression	Not Support
System
User		Access rights per account, initialize password, Account Add/Delete/Modify
Management		System log, Time setting
Upgrade		Iptool upgrade, Webpage upgrade, Emergency upgrade
Maintenance		Initialize Settings, Restart, Initialize partial settings, scheduled reboot (*)
Webpage Language		Korean, English, Japanese (*)
Network & Software
Network & Software	Ethernet	RJ-45 (10/100BASE-T)
	Network Type	Fixed IP, DHCP
	DDNS	WNS(), WRS()
	Port	HTTP : 80 / HTTPS : 443 / Onvif : 80 / RTSP : 554
	Protocol	HTTP, HTTPS, RTSP/RTP, TCP/IP, UDP, ARP, ICMP, DHCP, NTP, UPnP (*)
	IP Camera Protocol	Onvif Profile S, WESP
	Simultaneous Live View	Up to 2 streams with NVR(Onvif/WESP) Up to 7 streams with WEB Up to 4 streams with RTSP
	DST	Support
	Web Browser	Chrome, Edge, Safari, Firefox
	Web settings	Desktop (Mac, Linux and Windows) and multi-platform web setup
	PC CMS Software	Control Center, Control Center Pro
	Mobile Viewer	Support (Android, iOS)
	Relay Server	WinRDS
Security	TLS	Support
	User Access Logs	Support
	IP address filter	Support
	Session Close	Support(*)
General
Power		DC 12V /1A, PoE(802.3af)

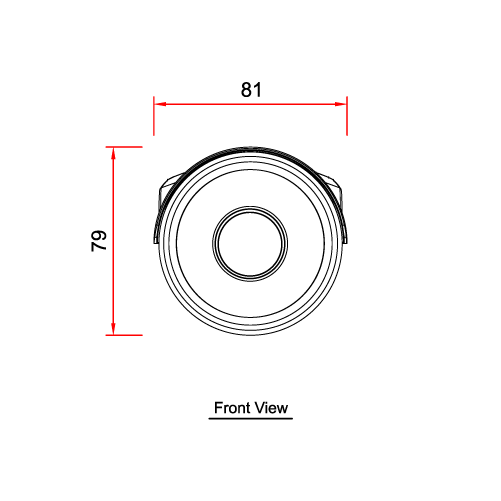

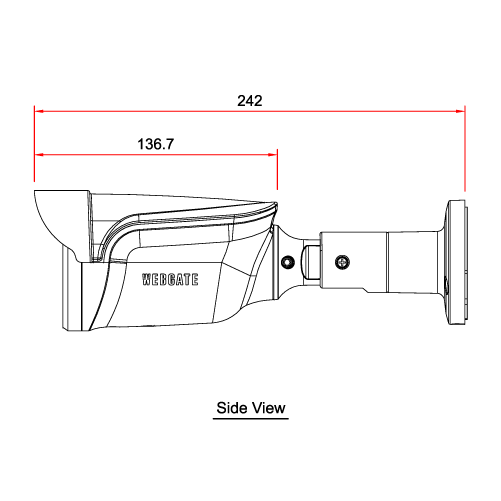

Size		81(W) ×79(H) ×242(D) mm
Power Consumption		7W
Operation Temperature		-25°C ~ 60°C(-13°F ~ +140°F)
Operation Humidity		0% RH ~ 80% RH
Certifications		KC, FCC, CE
Weight		460g

QA1.0

( * Marks: Scheduled to be supported)
(Specifications are subject to change without notice for product improvement.)

Category	File Name	Last Updated	Download
Leaflet	Leaflet_NK2200BL-F2_EN_1.0.pdf	2026-01-19	Download
Drawing	Drawing_NK2200BL-F2.zip	2026-01-19	Download
Manual	Manual_NKxx00_Series_EN_1.0.4.pdf	2026-02-11	Download
Firmware	Firmware_NK2200_2.0.3_build260122.zip	2026-01-28	Download
