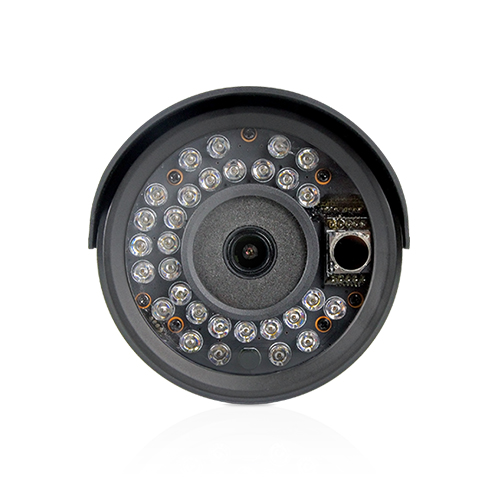

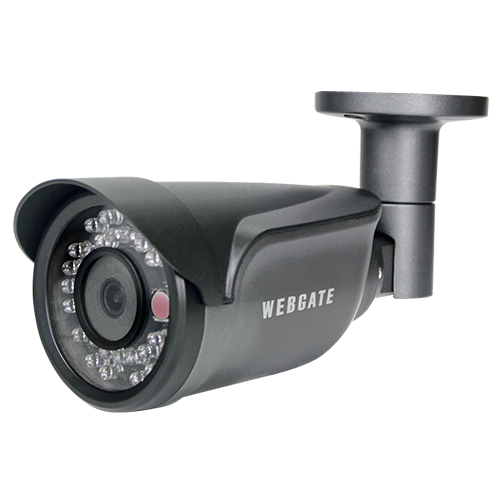

Fever/Thermal Detection Camera NK5100BL-T450

  • 5Megapixel Sony Starvis CMOS Sensor
  • Equipped with a FLIR sensor
  • Thermal detection : 20℃ ~ 450℃
  • Thermal Detection Area Configuration (Up to 6 Zones)
  • AI Events (Intrusion Detection, Line Crossing, Loitering)
  • De-Fog Function
  • H.265 / H.264 Support
  • Designed and Manufactured in Korea
  • Korea SoC Camera
Thermal Detection Camera key features

Introduction Video

Main Features



Webgate Thermal sensing cameras with domestic AI SoC, based on real images, area setting, AI video analysis
01 02 03
Real image-based
thermal detection
Thermal detection range
(20℃~450℃)
Thermal detection area setting
(up to 6 zones)
04 05 06
AI Video Analysis
(Line crossing, Region intrusion, etc.)
Smartphone
alarm function
Made in Korea
AI SoC
Thermal Detection

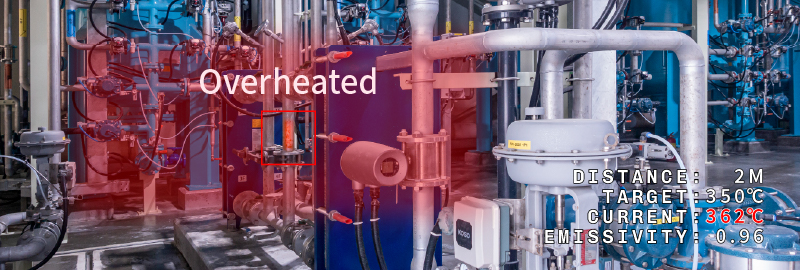

Thermal Detection Sensor (20℃~450℃)
Heat detection up to 450℃. Maximize thermal transmittance and sensor sensitivity by applying thermal sensor with special glass. Detecting object’s temperature and high-definition live monitoring at the same time. Camera sends push alarm to DVR(NVR) and PC(CMS) when it detects abnormal temperature. Applicable on heat sensitive devices & facilities and unmanned factories in a diverse industry.

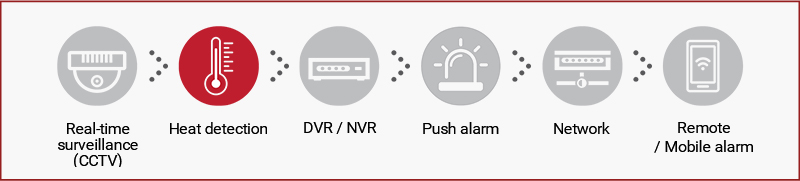

Thermal sensors, wide from low to high temperatures, optimized for fire and heat sensitive equipment, real-time monitoring, alarms and remote mobile alarms function Thermal imaging (thermal sensing) sensor and special glass application increase thermal temperature transmittance and sensing sensitivity to detect heat up to 450℃ and optimize heat sensitive equipment and factory automation

Thermal detection area setting

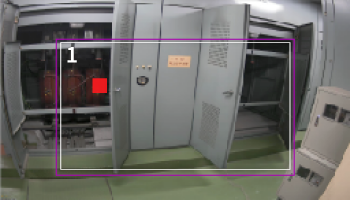

Thermal detection area (Full setting)
By setting the entire thermal detection area, an alarm is generated immediately when a heat source above the specified temperature occurs.

Set the entire thermal sensing area, triggering an alarm immediately if a heat source is generated above the specified temperature

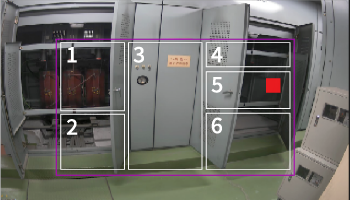

Thermal detection area (Up to 6 settings)
- The thermal detection area can be subdivided into up to 6 areas to more precisely set the areas of interest.
- It is useful for individually managing the temperature of multiple devices in one location.

Thermal Sensing Areas Segmented into up to 6 areas, precisely set areas of interest

Temperature setting
- The target temperature can be freely set for each area, and an alarm is generated when the set temperature is reached. (Individual setting for No.1~6)
- Setting path: Config → Event → Thermal detection
* Low temperature mode (20℃ ~ 180℃) / High temperature mode (180℃ ~ 450℃) *

Free setting of target temperature for each area, alarm when setting temperature is reached, low temperature mode, high temperature mode
AI Feature

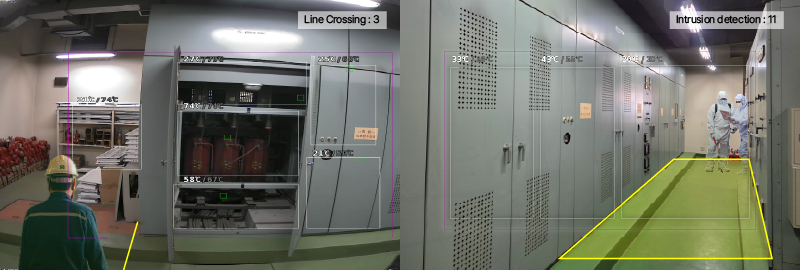

Line Crossing & Intrusion Detection
AI instantly detects and triggers events when a virtual line is crossed (Line Crossing) or a predefined area is entered (Intrusion Detection).

AI detects events in real-time when invading a set area or crossing a virtual line

SMD (Smart Motion Detection) for efficient scene filtering
Unlike conventional motion detection (MD), SMD uses AI-based object recognition to detect only meaningful movements. It provides accurate event detection that can replace traditional MD signals, enabling more efficient use of storage resources.

Unlike conventional MD methods, it detects only the movement of objects based on AI and provides events to minimize misalarms

Korea AI SoC



Made in Korea AI SoC
Developed and manufactured directly in Korea and equipped with a Korean AI SoC, ensuring high security and strong technological reliability based on local technology.

Strengthen security and system reliability by applying domestic AI SoC, and strengthen security and AI processing capabilities
korea soc cctv /CCTV Thermal Detection Camera / CCTV Thermal Imaging Camera CCTV
