| Video |
| Compression |
H.265/265+, H.264/264+, MJPEG
|
| Resolution |
6MP, 4MP, 1080P, 720P, D1, VGA, 480×240, CIF
|
| Bitrate |
64Kbps ~ 8Mbps
|
| Bitrate Control |
VBR / CBR
|
| Streaming |
Stream 1 : 30fps (2560×1440, 1920×1080), 20fps (3200×1800)
Stream 2 : 30fps (1280×720, 720×480, 640×480, 352×240)
Stream 3 : 30fps (720×480, 480×240, 352×240)
|
| Camera |
| Image Sensor |
1/2.5″ 6M CMOS
|
| Max. Resolution |
3200(H) × 1800(W)
|
| Electronic Shutter |
1/4s ~ 1/100000s, Auto, Manual, Anti-Flicker, DSS
|
| Min. Illumination |
Color |
0.008Lux @ (F1.6, AGC ON)
|
| B/W |
0 Lux with IR on
|
| Lens |
Day & Night |
True Day & Night |
| Type |
Motorized Vari-focal
|
| Focal Length |
2.8~12mm
|
| Angle |
H : 108°~36°
V : 57°~20°
D : 129°~42°
|
| Features |
Day/Night |
Auto / Day / Night / Timing |
| Image Enhancement |
WDR(120dB), HLC, BLC |
| DNR |
Support |
| Mirror |
Image Mirror (Horizontal), Image Flip(Vertical) |
| White balance |
Auto / Indoor / Outdoor / Manual |
| Video Mask |
Support |
| Event |
Smart motion detection, Tampering detection |
| DE-FOG |
Not Supported |
| AI
|
Line crossing, Region intrusion (Human, Vehicle classification)
|
| Light |
Dual Light(IR & White LED) |
| Illumination Distance |
50m(IR light), 40m(White light) |
| OSD |
Support |
| Input / Output |
| Alarm |
Input |
Not Supported |
| Output |
Not Supported |
| Video Output |
Not supported |
| Audio |
Input |
1CH Audio input, 1CH Built-in Mic |
| Output |
Not Supported |
| Compression |
G711A / G711U |
| Storage |
Built-in micro SD card slot (Up to 256GB)
|
| System |
| Management |
System log, Import/Export settings, Time setting |
| Upgrade |
Iptool upgrade, Webpage upgrade |
| Maintenance |
Initialize Settings, Restart, Initialize partial settings, Scheduled reboot
|
| Webpage Language |
Korean, English, Japanese |
| Network & Software |
| Network & Software |
Ethernet |
RJ-45 |
| Port |
HTTP : 80 / HTTPS : 443 / RTSP : 554 |
| Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, RTMP, HTTP, HTTPs, QoS
|
| IP Camera Protocol |
ONVIF |
| Simultaneous Live View |
Up to 6 streams with ONVIF (Supports 2 NVRs)
|
| Web Browser |
Chrome, Edge, Safari, Firefox (HTML5 Support)
|
| PC CMS Software |
Control Center, Control Center Pro |
| Mobile Viewer |
Support (Android, IOS) with DVR/NVR |
| Relay Server |
Not Supported |
| Security |
Online user, IP address filtering, Illegal login lock |
| Environment |
| Power |
DC 12V ± 10%, PoE (802.3af)
|

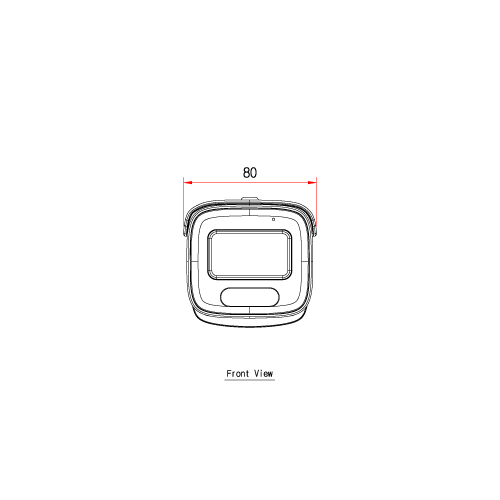

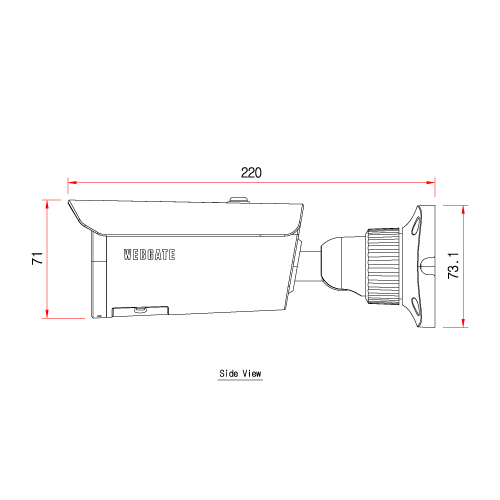

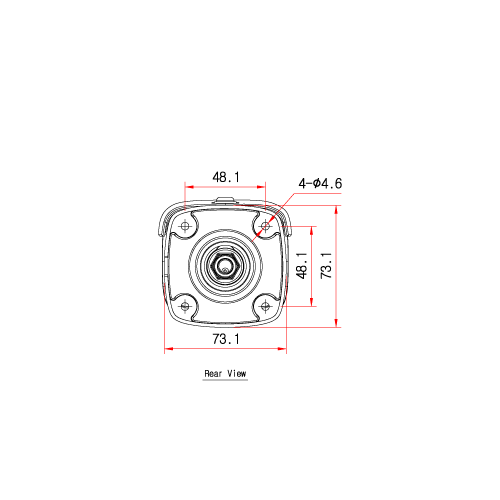

| Dimension
|
80 (W) × 71 (H) × 220 (D) mm
|
| Power Consumption |
< 9.5W
|
| Operation Temperature |
-30°C ~ 60°C (-22°F ~ 140°F)
|
| Operation Humidity |
0% RH ~ 95% RH |
| Protection |
IP67 |
| Certifications |
KC, CE, FCC
|
| Weight
|
680g |
